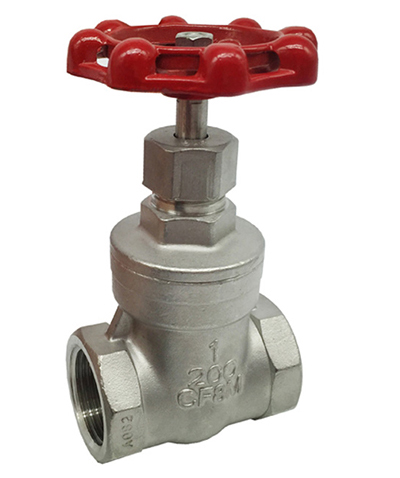

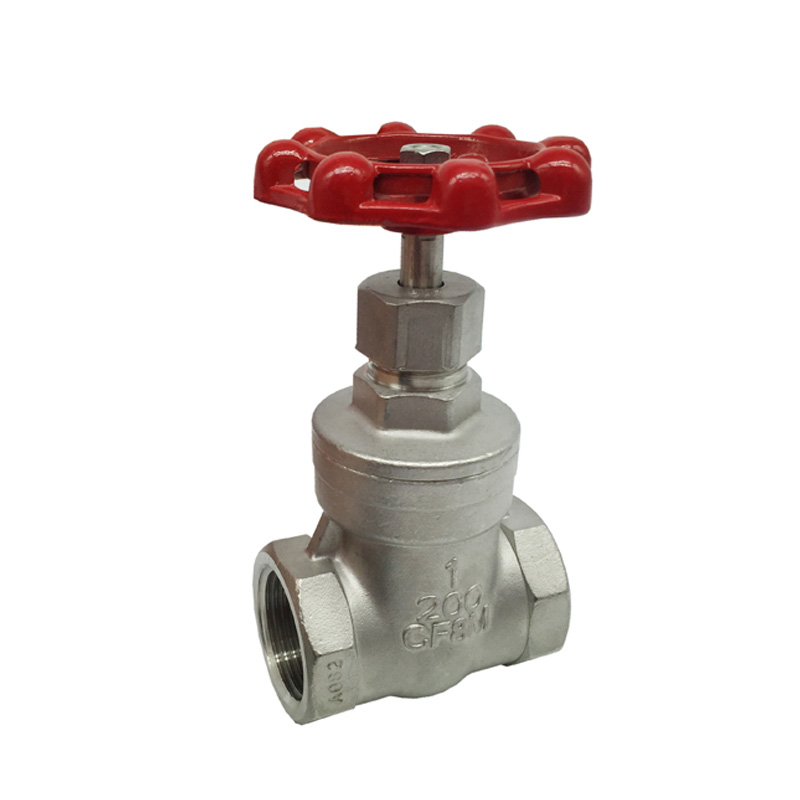

316 Stainless Steel Gate Valve

  • 316 Stainless Steel Gate Valve
Inquiry
  • Working pressure: 125 PSI WAP, 200 PSI CWP
  • Max. temperature: 180℃/350°F
  • ASTM A351 CF8M stainless steel body and bonnet, PTFE Teflon packing
  • Connection: Threaded and socket weld
  • Non-rising stem, round metal handle
  • The gate valve is a valve in which the flow of fluid is controlled by moving a wedge or disc-shaped gate.
  • Gate valves are used for shut off applications in a variety of pipelines. In the open position, the gate valve provides very little restriction to the flowing fluid. Thus, the primary advantage of the gate valve is low pressure drop.
Specifications
Inch/Metric(mm)
Item #
 Size
 DN L W D H
inch mm inch mm inch mm inch mm
SSGV-50 1/2" 15.00 2.66 67.5 0.12 3 2.80 71 3.66 93
SSGV-75 3/4" 20.00 2.76 70 0.12 3.1 2.44 62 4.17 106
SSGV-100 1" 25.00 3.03 77 0.16 4.1 2.95 75 4.57 116
SSGV-120 1-1/4" 32.00 3.43 87 0.19 4.8 2.95 75 4.80 122
SSGV-150 1-1/2" 40.00 3.94 100 0.19 4.8 3.74 95 5.67 144
SSGV-200 2" 50.00 4.33 110 0.22 5.6 3.74 95 5.71 145
  • 316 Stainless Steel Gate Valve

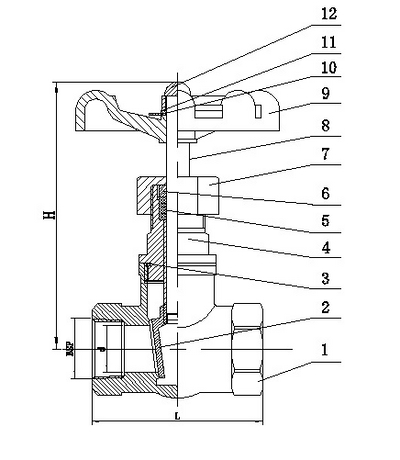

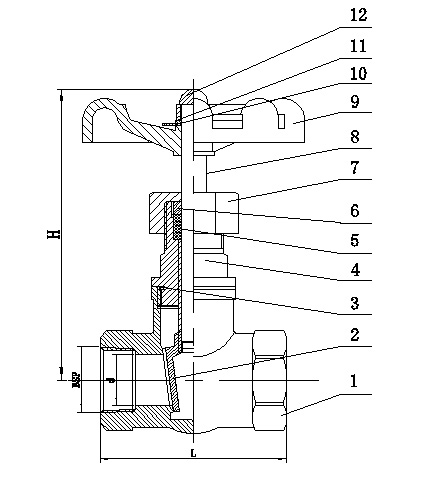

    • Part # Part Name Material
    12 Screen SS304 Stainless Steel
    11 Washer SS304 Stainless Steel
    10 Name plate AL.
    9 Handle wheel AL.
    8 Stem SS316 Stainless Steel
    7 Gland nut 316 Stainless Steel
    6 Gland bush SS316 Stainless Steel
    5 Packing PTFE
    4 Bonnet 316 Stainless Steel
    3 Gasket PTFE
    2 Disc 316 Stainless Steel
    1 Body 316 Stainless Steel
