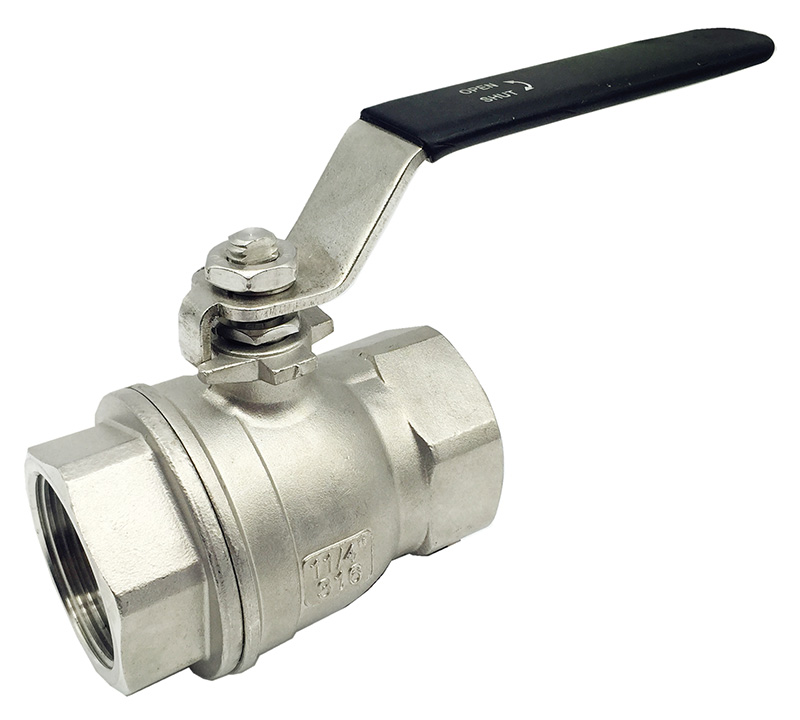

2 Piece Stainless Steel Ball Valve, Standard Port, 600 PSI
- Working pressure: 600PSI
- Temperature range: -22 °F to 428 °F (-30 °C to +220 °C)
- Standard port
- Size: available from 1/4" to 2-1/2"
Specifications
Item # | Size | DN | L | D | H | W |
SSB-A | 1/4 | 8A | 1.99''(50.5) | 0.39''(10) | 1.97''(50) | 3.35''(85) |
SSB-B | 3/8 | 10A | 1.99''(50.5) | 0.39''(10) | 1.97''(50) | 3.35''(85) |
SSB-C | 1/2 | 15A | 2.24''(56) | 0.39''(10) | 2.05''(52) | 3.35''(85) |
SSB-D | 3/4 | 20A | 2.40''(61) | 0.59''(15) | 2.28''(58) | 3.74''(95) |
SSB-AB | 1 | 25A | 2.91''(74) | 0.79''(20) | 2.44''(62) | 4.13''(105) |
SSB-BC | 1-1/4 | 32A | 3.29''(83.5) | 0.98''(25) | 2.60''(66) | 4.53''(115) |
SSB-CD | 1-1/2 | 40A | 3.64''(92.5) | 1.26''(32) | 3.03''(77) | 5.12''(130) |
SSB-AD | 2 | 50A | 4.09''(104) | 1.50''(38) | 3.23''(82) | 5.91''(150) |
SSB-AC | 2-1/2 | 65A | 5.12''(130) | 1.97''(50) | 3.70''(94) | 7.28''(185) |

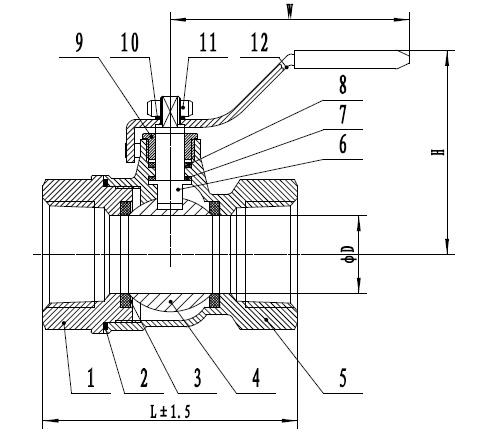

Part# | Part Name | Material |
1 | Cap | 304/316 stainless steel |
2 | Joint Gasket | PTFE |
3 | Ball Seat | 304/316 stainless steel |
4 | Ball | 304/316 stainless steel |
5 | Body | PTFE |
6 | Stem | 304/316 stainless steel |
7 | Thrust Washer | PTFE |
8 | Stem packing | PTFE |
9 | Gland Nut | 304 stainless steel |
10 | spring Washer | 304 stainless steel |
11 | Stem Nut | 304 stainless steel |
12 | Handle | 304 stainless steel |
