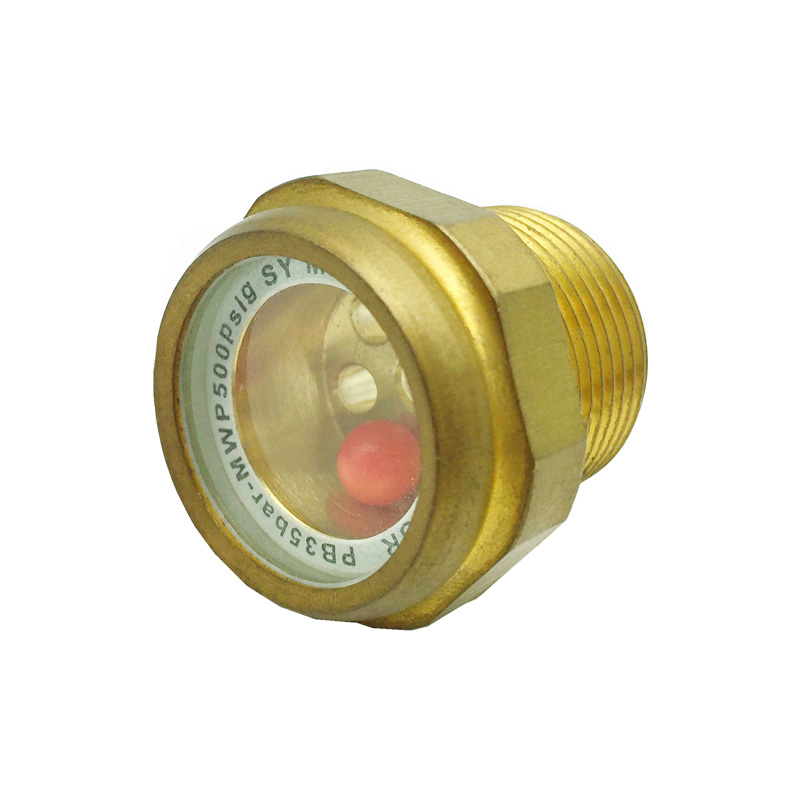

High Pressure Pipe Threaded Brass Sight Glass

  • High Pressure Pipe Threaded Brass Sight Glass
  • High Pressure Pipe Threaded Brass Sight Glass
Inquiry
  • Construction: solid brass body
  • Clear glass sight
  • Buna N seals
  • Stainless steel reflector
  • Connections with NPT, G, M, BSPP, R or customized
  • Max. working temperature up to 180 °F (82.1 °C)

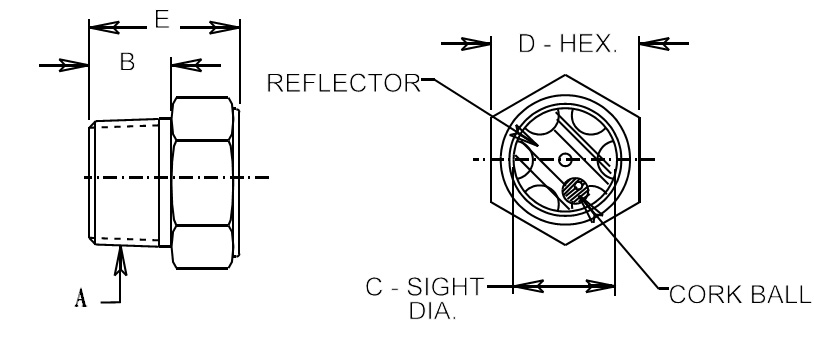

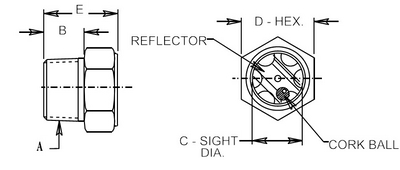

Inch/Metric (mm)
Item # A (Male) B C D E Max work press.PSI@ 69°F(20.6°C)
with Open view
 with Reflector
 with Reflector or Float Ball
KCSGBH-02 N/A N/A 1/4 0.50 (12.7) 0.34 (8.64) 0.62 (15.75) 1.12 (28.45) 675 (4654.1kpa)
KCSGBH-03 KCSGBH-03-01 KCSGBH-03-02 3/8 0.50 (12.7) 0.44 (11.18) 0.75 (19.05) 1.12 (28.45) 415 (2861.4kpa)
KCSGBH-04 KCSGBH-04-01 KCSGBH-04-02 1/2 0.62 (15.75) 0.56 (14.22) 0.88 (22.35) 1.25 (31.75) 250 (1723.8kpa)
KCSGBH-05 KCSGBH-05-01 KCSGBH-05-02 3/4 0.69 (17.53) 0.75 (19.05) 1.12 (28.45) 1.25 (31.75) 200 (1379kpa)
KCSGBH-06 KCSGBH-06-01 KCSGBH-06-02 1 0.81 (20.57) 0.97 (24.64) 1.44 (36.58) 1.5 (38.1) 100 (689.5kpa)
KCSGBH-07 KCSGBH-07-01 KCSGBH-07-02 1-1/4 0.88 (22.35) 1.19 (30.23) 1.75 (44.45) 1.56 (39.62) 60 (413.7kpa)
KCSGBH-08 KCSGBH-08-01 KCSGBH-08-02 1-1/2 0.88 (22.35) 1.38 (35.05) 2.00 (50.8) 1.56 (39.62) 50 (344.8kpa)
KCSGBH-09 KCSGBH-09-01 KCSGBH-09-02 2 0.88 (22.35) 1.88 (47.75) 2.5 (63.5) 1.69 (42.93) 20 (137.9kpa)
