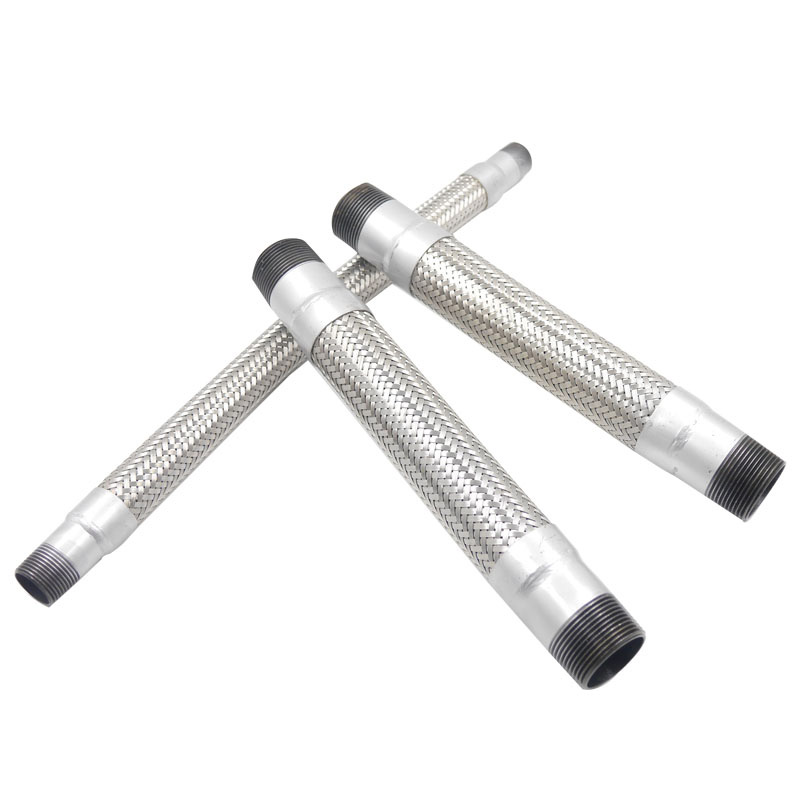

Flexible Hose, Stainless Steel Braided Hose

  • Flexible Hose, Stainless Steel Braided Hose
Inquiry
  • ISO9001, ISO2004, CE and ETL certified
  • Welding on both ends to prevent leakage and improve durability
  • Melting point of special welding material:1000°C
  • Melting point of common welding material:800-900°C
  • Connections can be repaired by welding materials to prevent the hose from being scrapped.
Item# Nominal Size Working Pressure Testing Pressure A B C D
( PSI) ( PSI)
SF-0 1/4" 650 3250 1/4" 1/2" 6-1/2" 7-7/8"
SF-1 3/8" 650 3250 3/8" 3/4" 7" 8-1/2"
SF-2 1/2" 650 3250 1/2" 7/8" 7-1/4" 9"
SF-3 5/8" 650 3250 5/8" 15/16" 8" 9-7/8"
SF-4 3/4" 650 3250 3/4" 1/4" 8-1/16" 10-1/2"
SF-5 7/8" 650 3250 7/8" 1-3/8" 9-1/4" 12"
SF-6 1-1/8" 600 3000 1-1/8" 1-3/4" 9-7/16" 13"
SF-7 1-3/8" 550 2750 1-3/8" 2-1/16" 11-7/16" 15-1/2"
SF-8 1-5/8" 510 2550 1-5/8" 2-1/4" 12-3/8" 16-15/16"
SF-9 2-1/8" 400 2000 2-1/8" 2-11/16" 15-3/16" 20-1/2"
SF-10 2-5/8" 350 1750 2-5/8" 3-1/16" 18" 24-1/8"
SF-11 3-1/8" 320 1600 3-1/8" 3-7/16" 20" 26-15/16"
SF-12 3-5/8" 190 570 3-5/8" 4-1/16" 24" 32-1/8"
SF-13 4-1/8" 190 570 4-1/8" 4-1/2" 24" 33"
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
