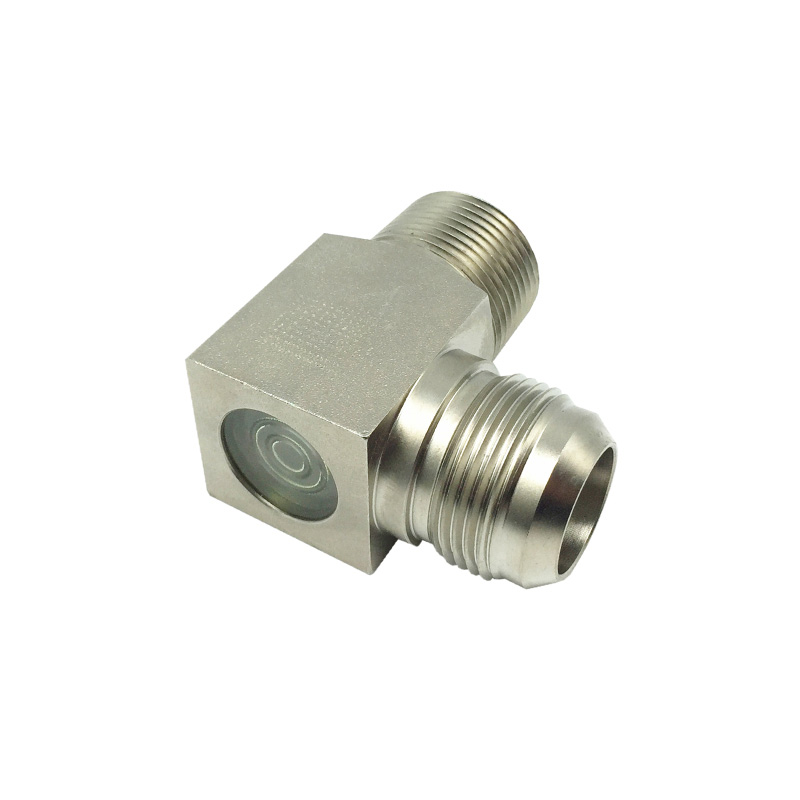

KCSGFE High Pressure Fused Sight Glass, 90° Elbow
- Meets SAE specifications and standards
- Steel construction with Nickel plated surface
- Fuses a glass lens inside of a metal housing
- Max. operating temperatures up to 500 °F (260 °C)
- With BullsEye sight glass

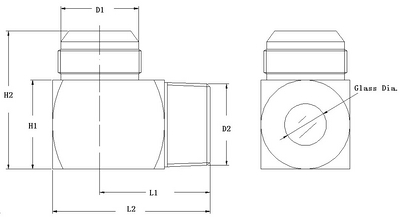

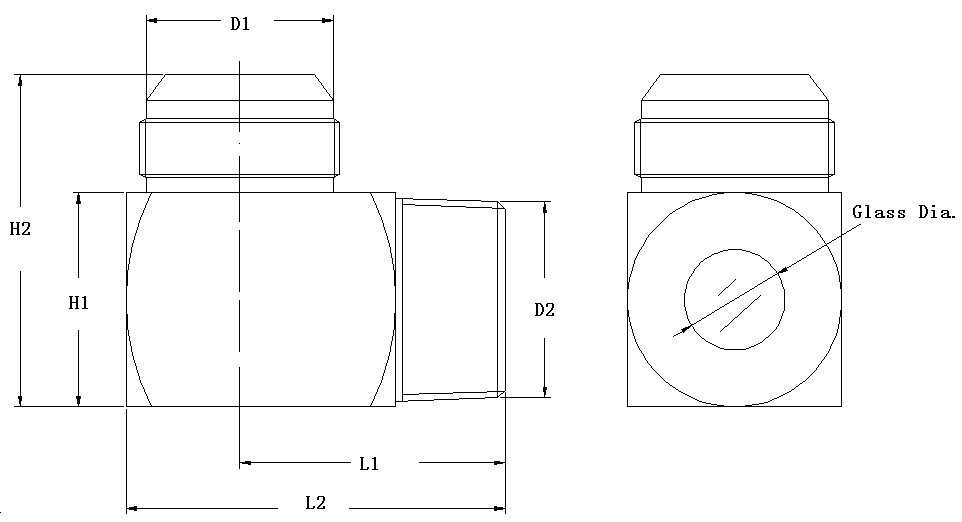

Inch/Metric (mm)
| Item # | D1 | D2 | Glass Dia. | L2 | L1 | H2 | H1 |
| KCSGFE-100 | 1 5/16-12UN, 37 Degree flared | 1" Male | 0.90"(22.86) | 2.66"(67.56) | 1.71"(43.43) | 2.54"(64.52) | 1.37"(34.80) |
| KCSGFE-150 | 1-1/2" Male |
