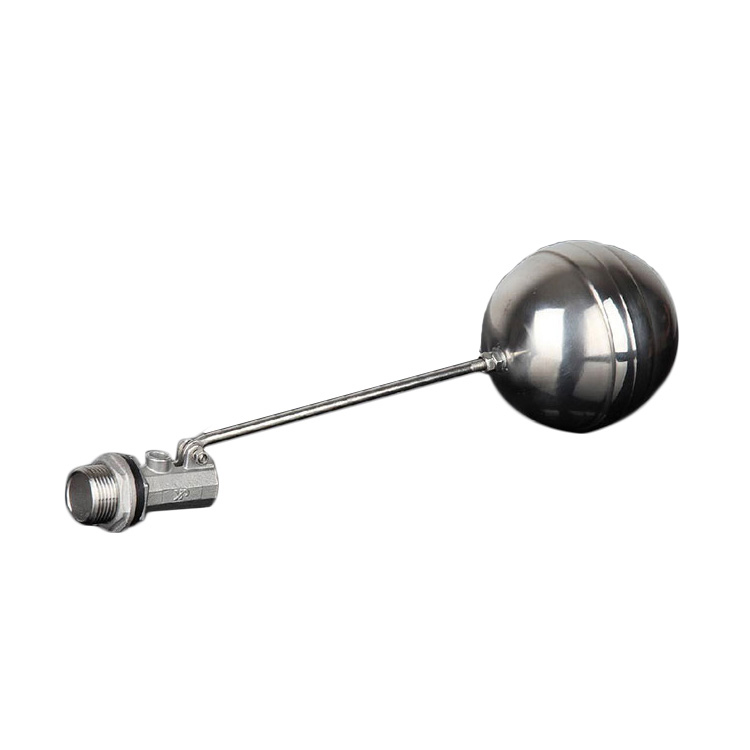

Stainless Steel Floating Ball Valve
- Working pressure: 150 PSI (Pn10)
- Applicable temperature: -40 °F to + 428°F (-40 °C to +220 °C)
- Size: 1/2"-2"
- Material: CF8M, CF8
- Material: 316/304 stainless steel
- Thread standard: GB T7306-1-2000 NPT
- Applicable media: water, steam, oil
- Standard for design & manufacturing: ASTM B16.34
- Valve inspection and testing according to standard QB/T1199-1991
- Thread end: BSP, BSPT, DIN2999, etc.
- Round handles recommended for use when there is insufficient space for 90-degree lever operation, also suitable for use in situations where projecting lever handles are not allowed.

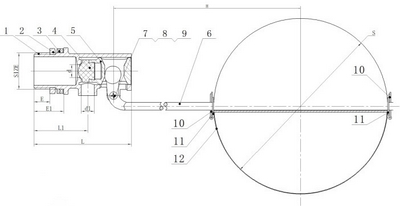

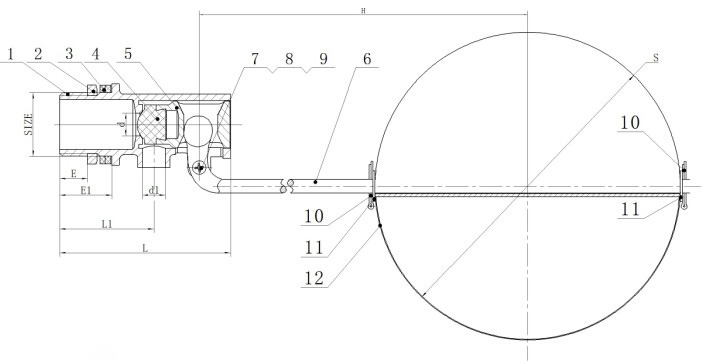

| Part # | Part Name | Q'ty | Material |
| 1 | Body | 1 | 304/316 Stainless Steel |
| 2 | Lock Cap | 1 | 304/316 Stainless Steel |
| 3 | Seal | 2 | NBR |
| 4 | Seal | 1 | Silicone/NBR |
| 5 | Plug | 1 | 304/316 Stainless Steel |
| 6 | Float Arm | 1 | 304/316 Stainless Steel |
| 7 | Nut | 1 | ASTM A194-8M |
| 8 | Spring Washer | 1 | ASTM A193-B8M |
| 9 | Bolt | 1 | ASTM A193-B8M |
| 10 | Pin | 2 | ASTM A193-B8M |
| 11 | Gasket | 2 | ASTM A193-B8M |
| 12 | Float Ball | 1 | ASTM A182 304/301 |
Inch/Metric (mm)
Item #
| DN | Size
| Dimensions |
| ￠B | D | L | S |
| SSFBV-50 | DN15 | 1/2" | 0.26"/6.7 | 9.06"/230 | 2.53"/64.5 | 3.94"/100 |
| SSFBV-75 | DN20 | 3/4" | 0.31"/8 | 9.06"/230 | 2.53"/64.5 | 3.94"/100 |
| SSFBV-100 | DN25 | 1" | 0.47"/12 | 12.83"/326 | 3.54"/90 | 5.31"/135 |
| SSFBV-125 | DN32 | 1-1/4" | 0.55"/14 | 13.07"/332 | 3.58"/91 | 5.91"/150 |
| SSFBV-150 | DN40 | 1-1/2" | 0.81"/20.5 | 15.55"/395 | 4.70"/119.5 | 9.84"/250 |
| SSFBV-200 | DN50 | 2" | 0.98"/25 | 18.58"/472 | 5.22"/132.5 | 10.43''/265 |
