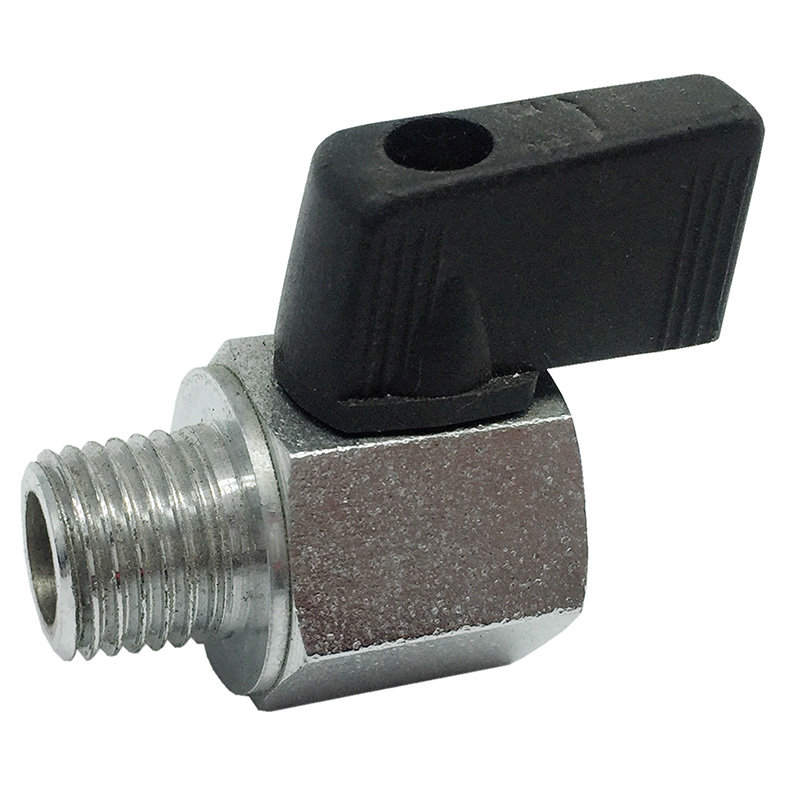

Stainless Steel Mini Ball Valve

  • Stainless Steel Mini Ball Valve
Inquiry
  • Working pressure: 450 PSI
  • Temperature range: -4 °F to + 250 °F (-20 °C to +120 °C)
  • Chrome plated hex brass body
  • Chrome plated brass ball, brass stem, PTFE ball seat and Viton stem sealing
  • ABS plastic wedge handle
  • Male thread at one end, and the other side is drain port without thread
Specifications
Inch/Metric(mm)

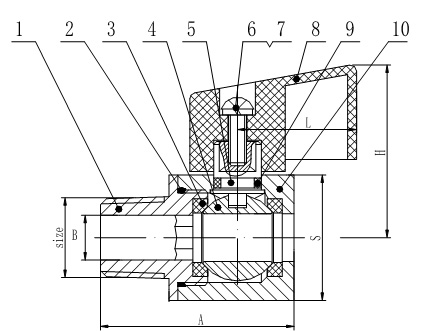

Size A B S H L
Inch mm Inch mm Inch mm Inch mm Inch mm
1/8" 1.22 30.99 0.24 6.10 0.82 20.83 1.10 27.94 0.78 19.81
1/4" 1.26 32.00 0.31 7.87 0.82 20.83 1.10 27.94 0.78 19.81
3/8" 1.26 32.00 0.31 7.87 0.82 20.83 1.10 27.94 0.78 19.81
1/2" 1.57 39.88 0.39 9.91 0.98 24.89 1.29 32.77 0.78 19.81
Stainless Steel Mini Ball Valve

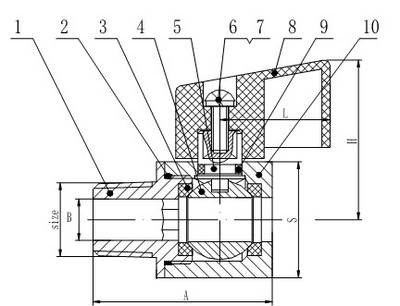

Part # Part Name Material
1 Valve Cap Brass, Chrome plated
2 Cap Sealing Rubber
3 Ball Seat PTFE
4 Ball Chrome plated Brass
5 Stem Brass, Chrome plated
6 Screw Steel
7 Washer Steel
8 Handle ABS Plastic
9 Stem Seal Viton
10 Body Brass, Chrome plated
