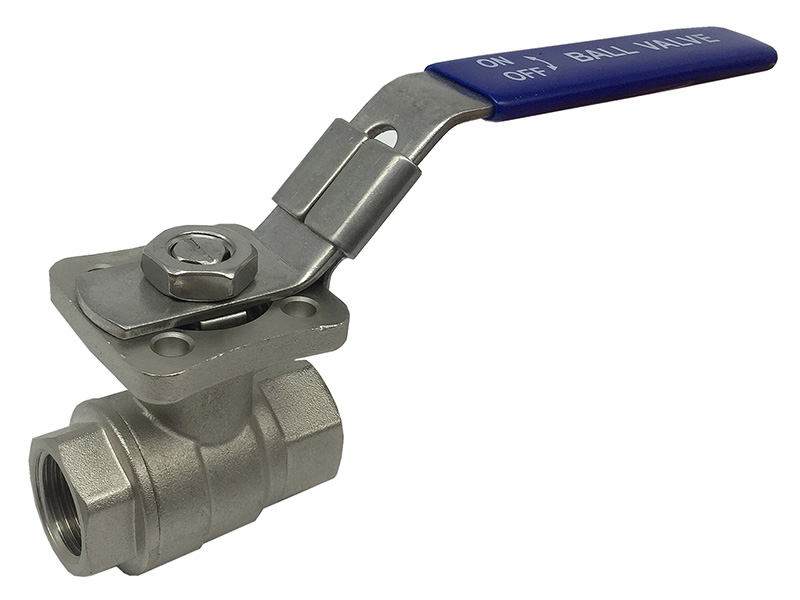

2 Piece SS 316 Ball Valve with ISO5211 Mounting Pad
- Working pressure: 1000 PSI (WOG)
- Temperature range: -20 °F to +450 °F (-30 °C to +230 °C)
- Full Port
- Stainless steel body, caps, stem and handle, PTFE seat
- Lever handle

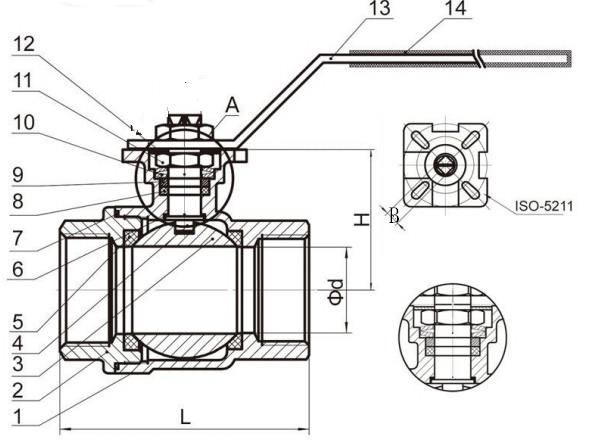

Specifications
Item #
|
Size
|
D |
L |
H |
B |
| ISOSBV-50 |
1/2" |
0.59/14.99 |
2.28/57.91 |
1.49/37.85 |
0.35/8.89 |
| ISOSBV-75 |
3/4" |
0.79/20.07 |
2.56/65.02 |
1.67/42.42 |
0.35/8.89 |
| ISOSBV-100 |
1" |
0.98/24.89 |
3.03/76.96 |
1.77/44.96 |
0.43/10.92 |
| ISOSBV-125 |
1-1/4" |
1.26/32.00 |
3.54/89.92 |
2.03/51.66 |
0.43/10.92 |
| ISOSBV-150 |
1-1/2" |
1.49/37.85 |
3.86/98.04 |
2.34/59.44 |
0.55/13.97 |
| ISOSBV-200 |
2" |
1.97/50.04 |
4.26/108.20 |
2.67/67.82 |
0.55/13.97 |
| Part # |
Part Name |
Material |
| 1 |
Body |
S.S.316 |
| 2 |
Cap |
S.S.316 |
| 3 |
Ball |
S.S.316 |
| 4 |
Stem |
S.S.316 |
| 5 |
Seat |
PTFE |
| 6 |
Thrust Washer |
PTFE |
| 7 |
Joint Gasket |
PTFE |
| 8 |
Stem Packing |
PTFE |
| 9 |
Gland Ring |
S.S.304 |
| 10 |
Spring Washer |
S.S.304 |
| 11 |
Stem Nut |
S.S.304 |
| 12 |
Against Pine Pad |
S.S.304 |
| 13 |
Handle |
S.S.304 |
| 14 |
Handle Cover |
PVC |
