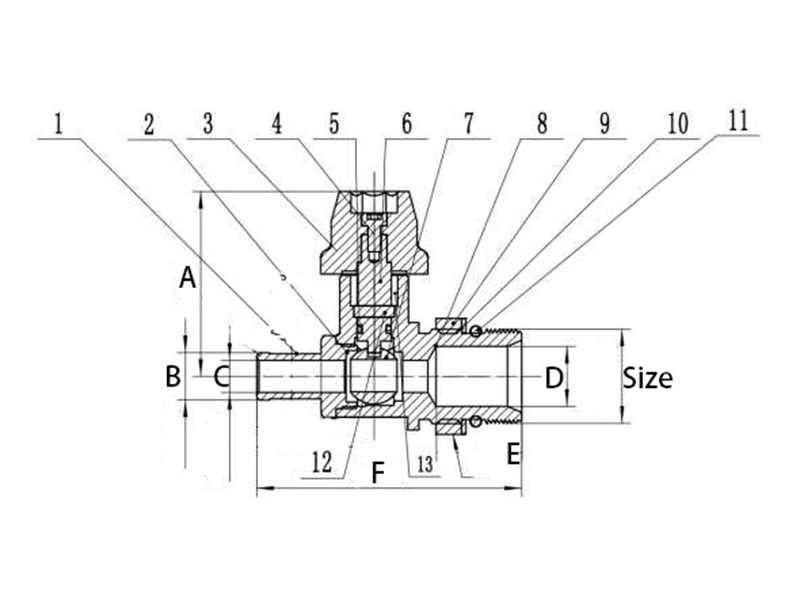

| Part No. | Size | A(In) | B(In) | C(In) | D(In) | E(In) | F(In) | Carton Qty. | Wt. (lbs.) |
| SSTV-2 | 7/8-14UNF | 1.69 | 0.43 | 0.30 | 0.55 | 1.06 | 2.42 | 80 | 0.39 |
| Part No. | Description | Material |
| 1 | 3/8"S.S.Nipple | 304 S.S. |
| 2 | Ball Seat | PTFE |
| 3 | Handle | 304 S.S. |
| 4 | M3 Screw | 304 S.S. |
| 5 | O-Ring-4.6*1.8 | Viton |
| 6 | Stem | 304 S.S. |
| 7 | Ball-13.2*7.5*3 | 304 S.S. |
| 8 | Body | 304 S.S. |
| 9 | Lock Nut | 304 S.S. |
| 10 | Back Washer | 304 S.S. |
| 11 | O-Ring 19.5*2.5 | Viton |
| 12 | Gasket 10.5*8*1.5 | PTFE |
| 13 | Washer | 304 S.S. |
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc.
