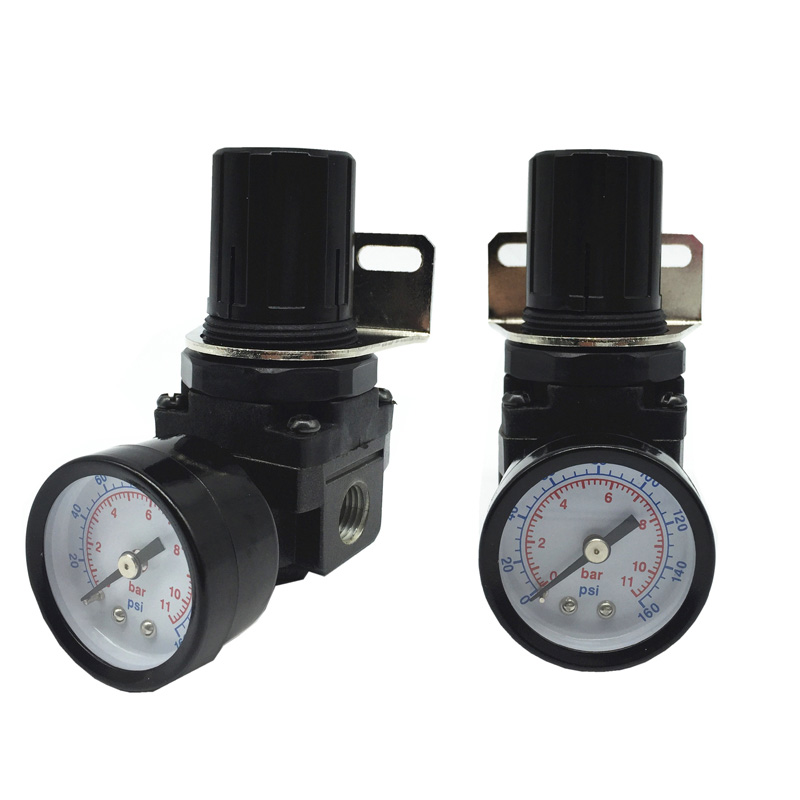

Air Regulator

  • Air Regulator
Inquiry
  • Rated inlet pressure up to 140 PSI (10 bar)
  • Ambient and fluid temperature: 41 °F to 140 °F (5 °C to 60 °C）
  • Port threads: NPT, PT, or BSPP
  • Flow capacity: See below, at 0.7Mpa Inlet Pressure and set at 0.5Mpa.
  • Mounting bracket included
  • Fitted with overflow valve
Item # Port Size Gauge Port Flow Capacity (L/min) Regulating Range
APRM20-12 1/8 1/8 500 0.05~0.85Mpa
(0.5~8.5kgf/cm2)
(7.25psi~123psi)
APRM20-25 1/4
APRS25-25 1/4 2000
APRS25-33 3/8
APRS30-25 1/4 2500
APRS30-33 3/8
APRL40-33 3/8 1/4 6000
APRL40-50 1/2
ARPL40-75 3/4
APRL50-75 3/4 8000
APRL50-1 1
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
