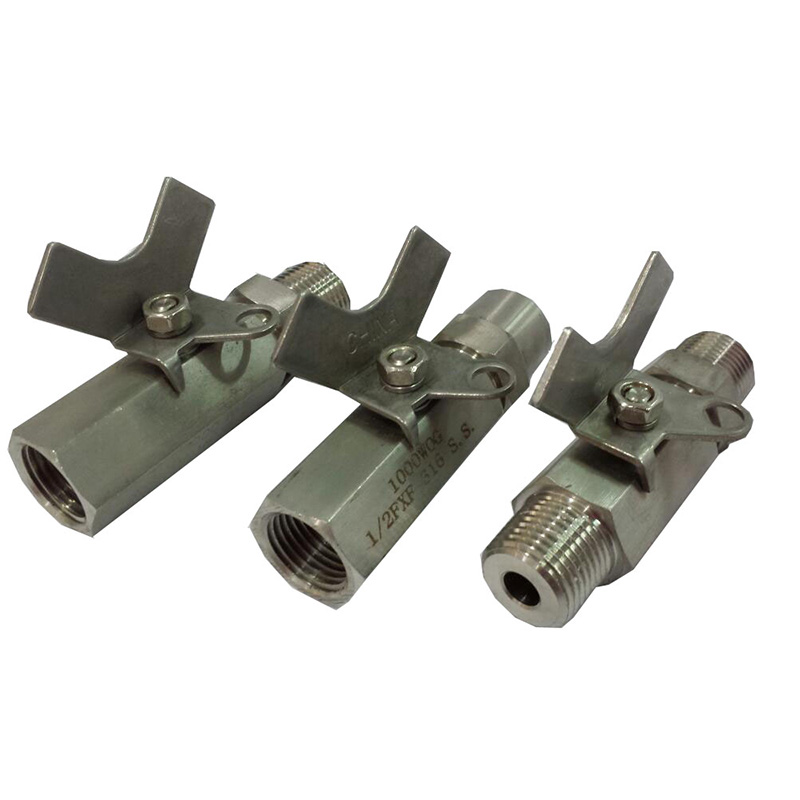

1000PSI Mini Stainless Steel Ball Valve
- Working pressure: 1000 psi
- Temperature Range: -36 ° F to + 368 ° F
( -38 ° C to + 190 ° C)
- Full port for 1/4", standard port for 3/8" and 1/2"
- 316 Stainless steel body and cap, with lock out handle
- Teflon seat and sealing
Specifications
Inch/Metric(mm)
| Item # | Size | d | L | B (Hex) | H |
| inch | mm | inch | mm | inch | mm | inch | mm |

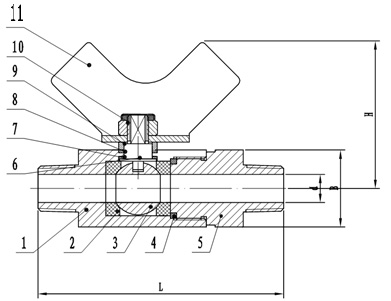

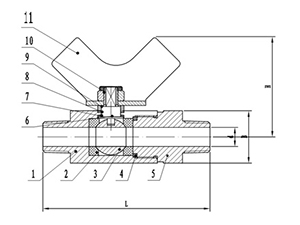

| MSMM-50 | 1/2"×1/2"(M×M) | 0.31" | 8 | 3.48" | 88.4 | 0.97" | 24.8 | 1.63" | 41.5 |
| MSMM-33 | 3/8"×3/8"(M×M) | 0.31" | 8 | 2.75" | 70 | 0.85" | 21.8 | 1.63" | 41.5 |
| MSMM-25 | 1/4"×1/4"(M×M) | 0.31" | 8 | 2.75" | 70 | 0.85" | 21.8 | 1.63" | 41.5 |

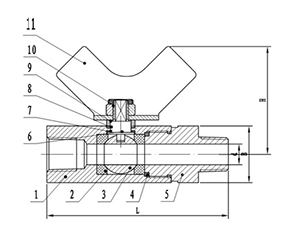

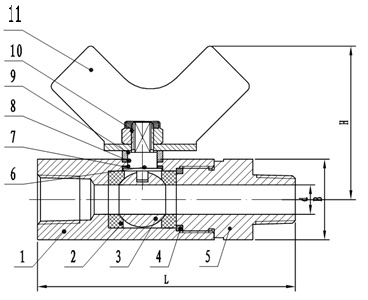

| MSMF-50 | 1/2"×1/2"(F×M) | 0.31" | 8 | 3.46" | 88 | 0.97" | 24.8 | 1.63" | 41.5 |
| MSMF-33 | 3/8"×3/8"(F×M) | 0.31" | 8 | 2.75" | 70 | 0.85" | 21.8 | 1.63" | 41.5 |
| MSMF-25 | 1/4"×1/4"(F×M) | 0.31" | 8 | 2.75" | 70 | 0.85" | 21.8 | 1.63" | 41.5 |

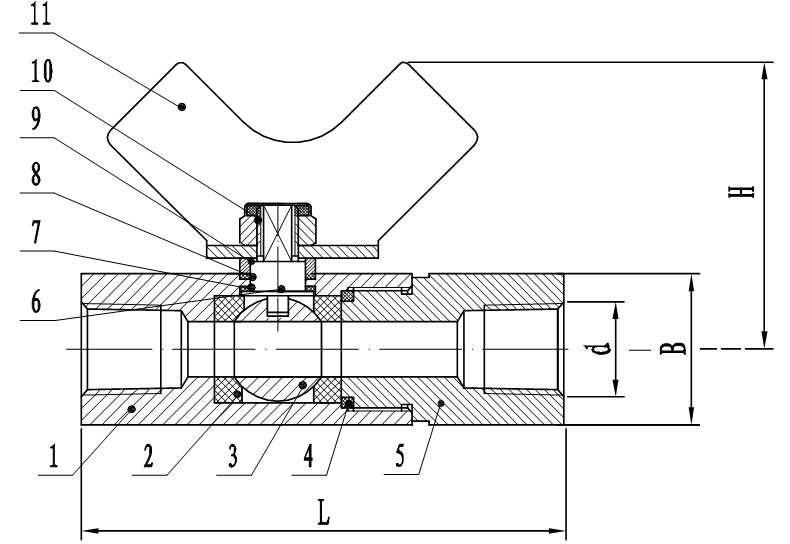

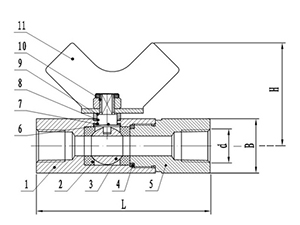

| MSFF-50 | 1/2"×1/2"(F×F) | 0.31" | 8 | 3.46" | 88 | 0.97" | 24.8 | 1.63" | 41.5 |
| MSFF-33 | 3/8"×3/8"(F×F) | 0.31" | 8 | 2.75" | 70 | 0.85" | 21.8 | 1.63" | 41.5 |
| MSFF-25 | 1/4"×1/4"(F×F) | 0.31" | 8 | 2.75" | 70 | 0.85" | 21.8 | 1.63" | 41.5 |
| Part # | Part Name | Material |
| 1 | Body | S316 stainless steel |
| 2 | Seat | PTFE |
| 3 | Ball | S316 stainless steel |
| 4 | O-Ring | Viton Fluor elastomer |
| 5 | Cap | S316 stainless steel |
| 6 | Stem | S316 stainless steel |
| 7 | Stem Bottom Seal | PTFE |
| 8 | Stem Top Seal | PTFE |
| 9 | Spring Washer | S316 stainless steel |
| 10 | Lock Nut | Steel |
| 11 | Handle | Steel |
