QCV / QCVP Quick Connect Couplings
- Working pressure: 1500 PSI
- Temperature range: -40 ° F to 175 °F (-40 °C+80 °C)
- Two-way shut off design
- Brass construction
- Viton ® O-rings
- Interchangeable with most quick couplers
- Both ends with large diameters provides easy connect & disconnect

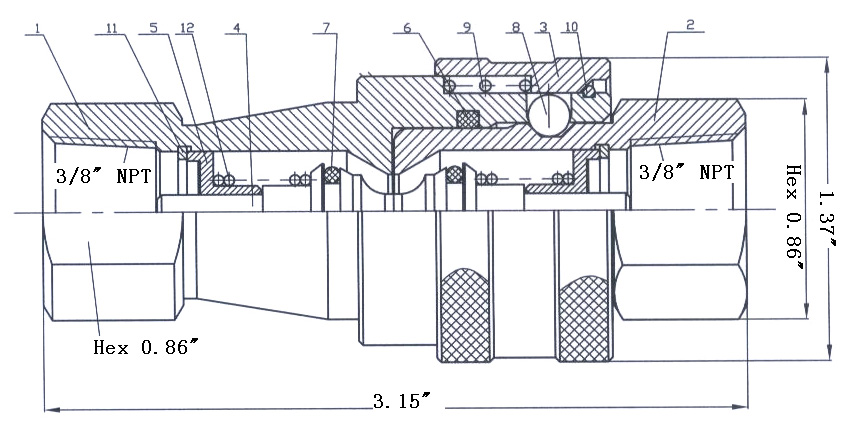

Part # | Part Name | Material |
1 | Socket Body | Brass |
2 | Plug Body | Brass |
3 | Socket Sleeve | Brass |
4 | Socket Valve Core | Brass |
5 | Seat for Socket Valve Core | Brass |
6 | Socket O-Ring | Viton |
7 | Lock Ball | Stainless Steel |
8 | Sleeve Spring | Stainless Steel |
9 | Sleeve Clip | Stainless Steel |
10 | Seat Clip | Stainless Steel |
11 | Spring For Socket Valve Core | Stainless Steel |
12 | Socket Core Sealing | Viton |
13 | Socket Valve Core | Brass |
