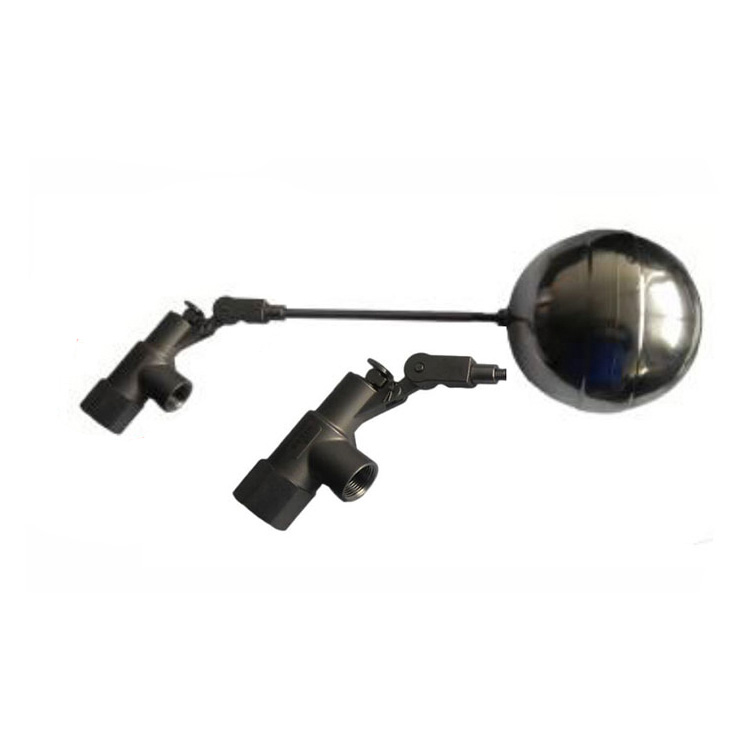

B Type Stainless Steel Float Ball Valve
- Temperature range: -60 to +550 degree Fahrenheit ( -51℃ to 287 ℃)
- 316 Stainless steel valve body, float and rod with excellent corrosion resistance
- Working pressure: 230 PSI
- Connection: NPT female
- Sizes available: 3/8'' to 1''
- For use in open and closed tanks
- PTFE seals feature good high temperature and corrosion resistance.
Inch/Metric (mm)
| Pipe Size, Inlet x Outlet | Flow Rate@50psi
| Max. psi
| Float Dia. | Rod to Float Lg. |
| 3/8'' x 3/8'' | 15.4gpm | 85 | 5.9''/149.86 | 15.7''/398.78 |
| 1/2'' x 1/2'' | 15.4gpm | 85 | 5.9''/149.86 | 15.7''/398.78 |
| 3/4'' x 3/4'' | 15.4gpm | 85 | 5.9''/149.86 | 15.7''/398.78 |
| 1' x 3/4'' | 15.4gpm | 85 | 5.9''/149.86 | 15.7''/398.78 |
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
