Item # | Size | L | D | DN | H | L3 |
Brass Spring Handle Ball Valve | ||||||
1WMP1 | 1/2" | 2.19/55.63 | 1.24/31.50 | 0.59/14.99 | 2.24/56.90 | 3.92/99.57 |
1WMP2 | 3/4" | 2.38/60.45 | 1.5/38.10 | 0.75/19.05 | 2.36/59.94 | 3.92/99.57 |
1WMP3 | 1" | 3.23/82.04 | 1.91/48.51 | 0.98/24.89 | 2.71/68.83 | 4.49/114.05 |

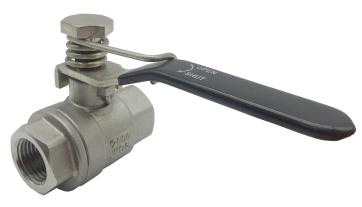

316 Stainless Steel Spring Handle Ball Valve | ||||||
SSBV-50 | 1/2" | 2.19/55.63 | 1.24/31.50 | 0.59/14.99 | 2.24/56.90 | 3.92/99.57 |
SSBV-75 | 3/4" | 2.38/60.45 | 1.5/38.10 | 0.75/19.05 | 2.36/59.94 | 3.92/99.57 |
SSBV-100 | 1" | 3.23/82.04 | 1.91/48.51 | 0.98/24.89 | 2.71/68.83 | 4.49/114.05 |

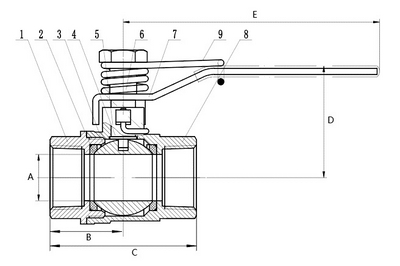

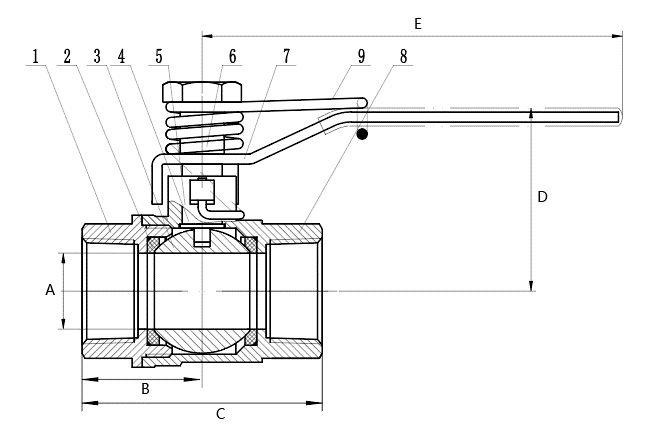

Part # | Part Name | Material |
1 | Caps | Brass/316.S.S. |
2 | Seat | PTFE |
3 | Ball | Brass/316.S.S. |
4 | Stem | Stainless Steel |
5 | O- Ring | Viton |
6 | Nut | Brass/316.S.S. |
7 | Handle | Stainless Steel |
8 | Body | Brass/316.S.S. |
9 | Spring Coil | Stainless Steel |
