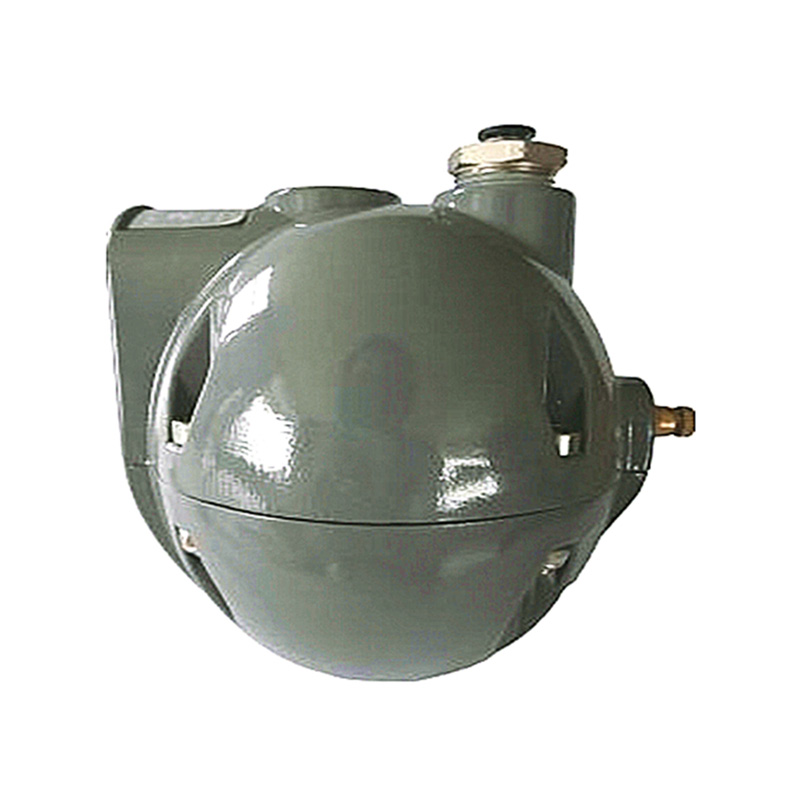

Automatic Float Drain, 800L
- Capacity up to 200 gallons/h
- Working pressure: 230 PSI
- Max. working temperature: 200 ℉
- Die cast aluminum body with powder coated surface
- Stainless steel float ball
- 1/2" NPT female inlet and outlet connection
- Requires 9" clearance below reservoir for installation
- Equipped with "Anti-Airlock" vent tube
- No power required
- Large orifice ensures trouble-free service
- Zero wasted compressed air
- Discharge condensate without air
- Ideally suits to apply on applications where power is not available or desired.

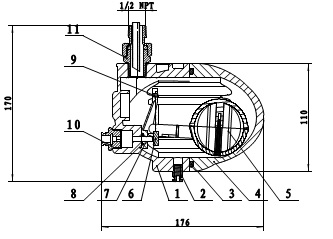

Part # | Part Name | Material |
1 | Housing | Aluminum |
2 | Manual Drain | Brass |
3 | Seal | Rubber |
4 | Housing Cap | Aluminum |
5 | Float Ball Kit | Plastic |
6 | Port Seal Kit | S.S & Rubber |
7 | Float Ball Bracket | Plastic |
8 | Ball Seat 0-Ring for Ball Seat | Rubber |
9 | Stainless Steel Screws | S.S |
10 | Push on Fitting | Brass |
11 | 4PC Kit for Air Inlet Fittings | Brass |
