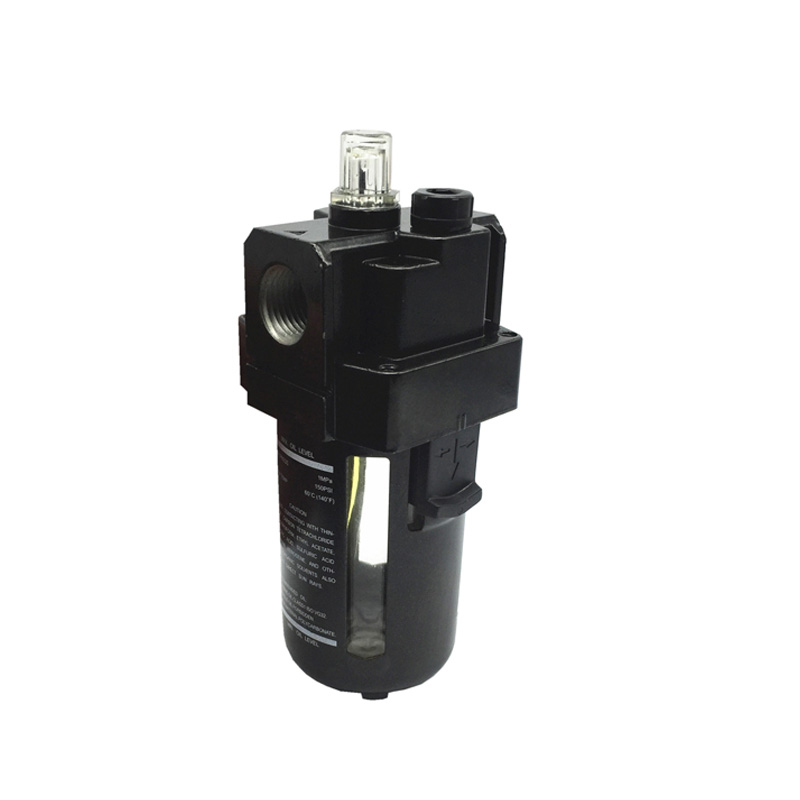

Miniature Air Lubricator
- Rated inlet pressure up to 140 PSI (10bar)
- Ambient and fluid temperature: 41 °F to 140 °F (5 °C to 60 °C）
- Min. flow of oil drop: See below, flow at the pressure of 0.5 Mpa (5.1 kgf/cm2)
- 5 Oil drops/minute at 20°C temperature
- Port threads: NPT, PT, or BSPP
- Bowl material: Polycarbonate (with steel protective cover on APLS30-25 to APLL50-1)
| Item # | Port Size | Min. Flow of Oil Drop (L/min)
| Flow Capacity (L/min)
|
| APLM20-12 | 1/8 | 15 | 800 |
| APLM20-25 | 1/4 |
| APLS30-25 | 1/4 | 30 | 1700 |
| APLS30-33 | 3/8 | 40 |
| APLL40-33 | 3/8 | 5000 |
| APLL40-50 | 1/2 | 50 |
| APLL40-75 | 3/4 | 6300 |
| APLL50-75 | 3/4 | 190 | 7000 |
| APLL50-1 | 1 |
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
Intech Manufacturing Sourcing
