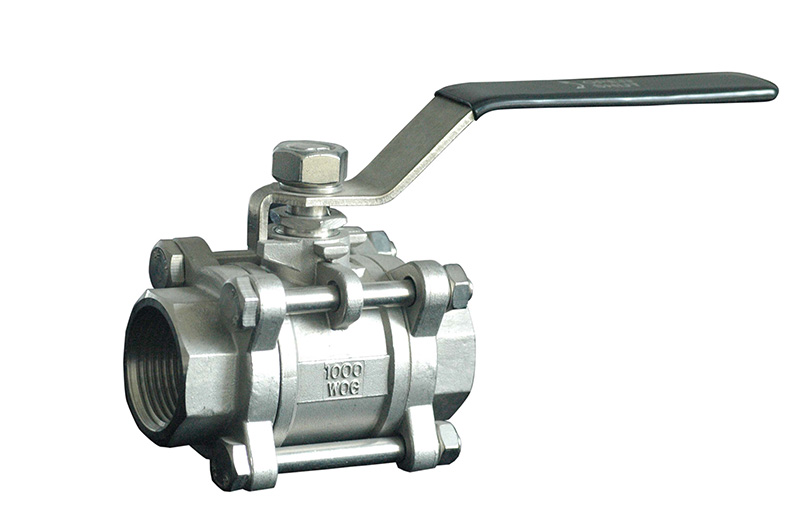

3 Piece Stainless Steel Ball Valve
- Working pressure: 1000 PSI
- Temperature range: -20 ˚F to 425 ˚F (-30 °C to 220 °C)
- Suitable for vacuum service up to 29.9"Hg

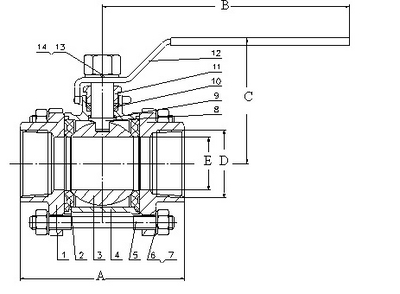

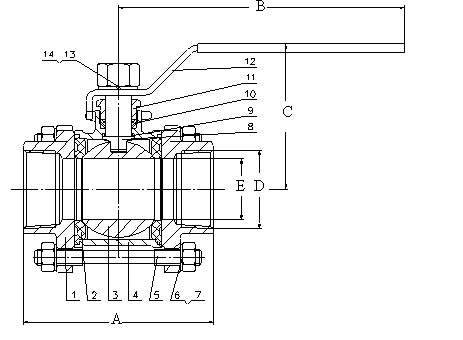

Specifications
Inch/Metric(mm)
| Item # | Size (D) | A | B | C | E |
| Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| SS3P-25 | 1/4" | 2.55 | 64.77 | 3.54 | 89.92 | 1.88 | 47.75 | 0.39 | 9.91 |
| SS3P-33 | 3/8" | 2.55 | 64.77 | 3.54 | 89.92 | 1.88 | 47.75 | 0.47 | 11.94 |
| SS3P-50 | 1/2" | 2.75 | 69.85 | 3.93 | 99.82 | 2.16 | 54.86 | 0.59 | 14.99 |
| SS3P-75 | 3/4" | 3.14 | 79.76 | 4.72 | 119.89 | 2.36 | 59.94 | 0.78 | 19.81 |
| SS3P-100 | 1" | 3.54 | 89.92 | 5.51 | 139.95 | 2.75 | 69.85 | 0.98 | 24.89 |
| SS3P-125 | 1-1/4" | 4.33 | 109.98 | 5.51 | 139.95 | 3.22 | 81.79 | 1.25 | 31.75 |
| SS3P-150 | 1-1/2" | 4.72 | 119.89 | 7.08 | 179.83 | 7.08 | 179.83 | 1.49 | 37.85 |
| SS3P-200 | 2" | 5.70 | 144.78 | 7.87 | 199.90 | 4.13 | 104.90 | 1.96 | 49.78 |
| Part # | Part Name | Material |
| 1 | Cap | Stainless Steel |
| 2 | Cap Seal | PTFE |
| 3 | Ball | Stainless Steel |
| 4 | Body | Stainless Steel |
| 5 | Bolt | Stainless Steel |
| 6 | Washer | Carbon Steel |
| 7 | Nut | Stainless Steel |
| 8 | Stem | Stainless Steel |
| 9 | Bottom Seal | PTFE |
| 10 | Stem Packing | PTFE |
| 11 | Gland Ring | Stainless Steel |
| 12 | Handle | Stainless Steel |
| 13 | Washer | Stainless Steel |
| 14 | Nut | Stainless Steel |
