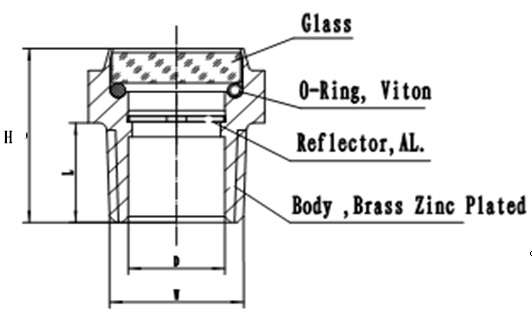

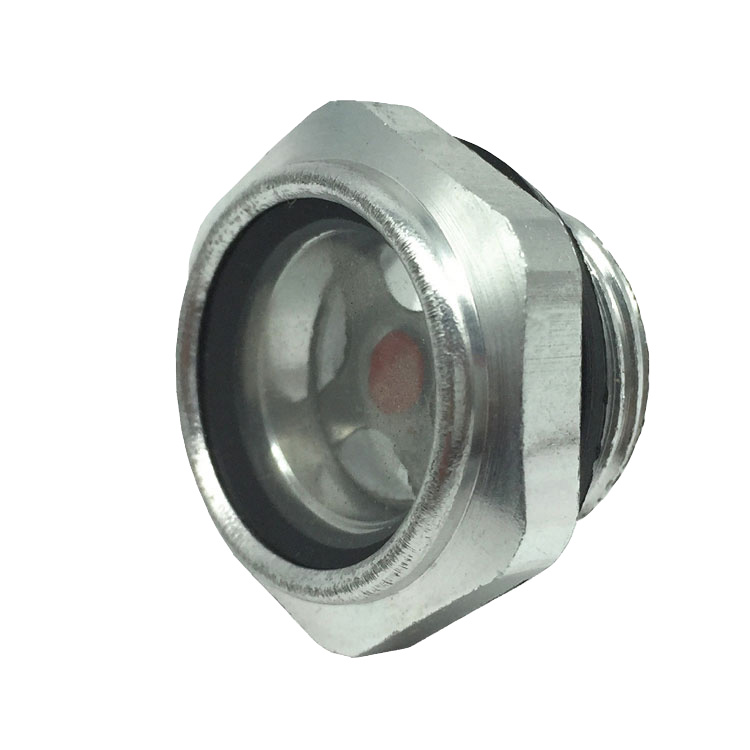

Low Pressure Zinc Plated Brass Sight Glass, with Male Pipe Thread
- Zinc plated brass body
- with Reflector
- Buna N seal
- Max. working temperature up to 250 °F (121 °C).
Inch/Metric (mm)
Item # | W | H | L | D | S | Max.psi @70°F(21°C) |
93334-025 | 1/4" | 0.91(23.11) | 0.53(13.46) | 0.31(7.87) | 0.75(19.05) | 125 |
93334-033 | 3/8" | 0.91(23.11) | 0.53(13.46) | 0.47(11.94) | 0.75(19.05) | 125 |
93334-050 | 1/2" | 1.12(28.45) | 0.67(17.02) | 0.55(13.97) | 0.98(24.89) | 125 |
93334-075 | 3/4" | 1.25(31.75) | 0.75(19.05) | 0.75(19.05) | 1.26(32.00) | 125 |
