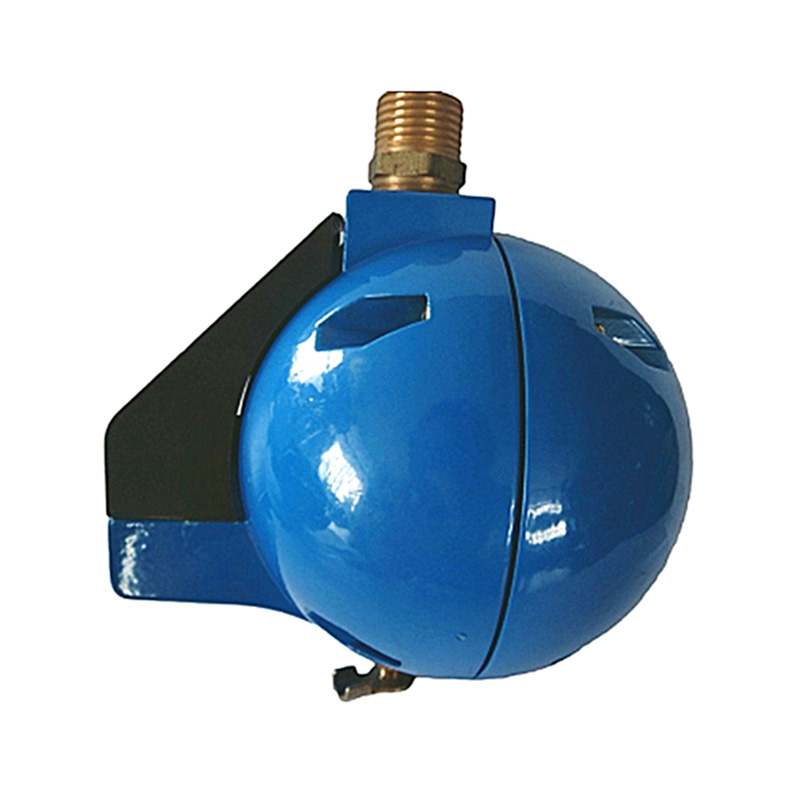

Automatic Float Drain, 400L
- Capacity up to 200 gallons/h
- Working pressure: 230 PSI
- Max. working temperature: 200 ℉
- Die cast aluminum body with powder coated surface
- Stainless steel float ball
- 1/2" NPT female inlet and outlet connection
- Requires 9" clearance below reservoir for installation
- Equipped with "Anti-Airlock" vent tube
- No power required
- Large orifice ensures trouble-free service
- Zero wasted compressed air
- Discharge condensate without air
- Ideally suits to apply on applications where power is not available or desired.

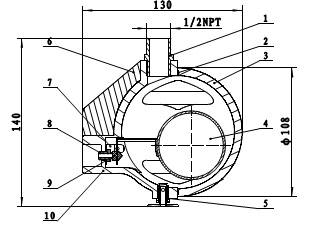

Part # | Part Name | Material |
1 | Push-on Fitting | Brass |
2 | Seal | Rubber |
3 | Housing Cap | Aluminum |
4 | Float Ball | S.S |
5 | Manual Drain | Brass |
6 | Cap | Plastic |
7 | Fixed Support | S.S |
8 | Drain Nozzle | Brass |
9 | Colliod | Plastic |
10 | Housing | Aluminum |
