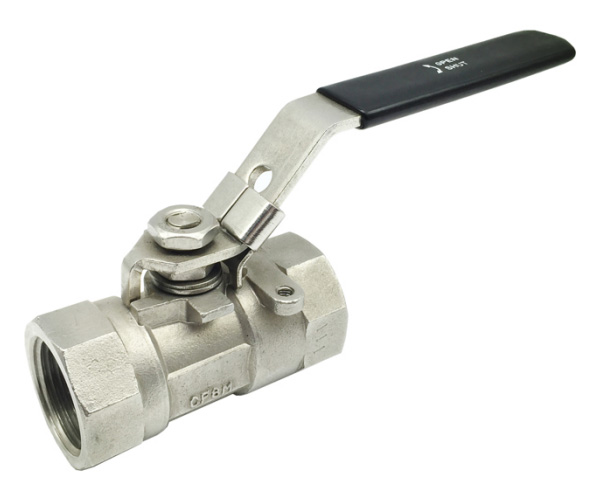

Unibody Stainless Steel Ball Valve, Fire-Safe
- Working pressure: 2000 PSI W.O.G. (cold water, oil, gas)
- Temperature range: -20 ° F to +450 ° F (-30 °C to 23 °C)
- Full port for 1/4", standard port for 3/8" to 1/2", reduced port for 3/4" to 2"
- RPTFE seat
- Female NPT
Specifications
Inch/Metric(mm)

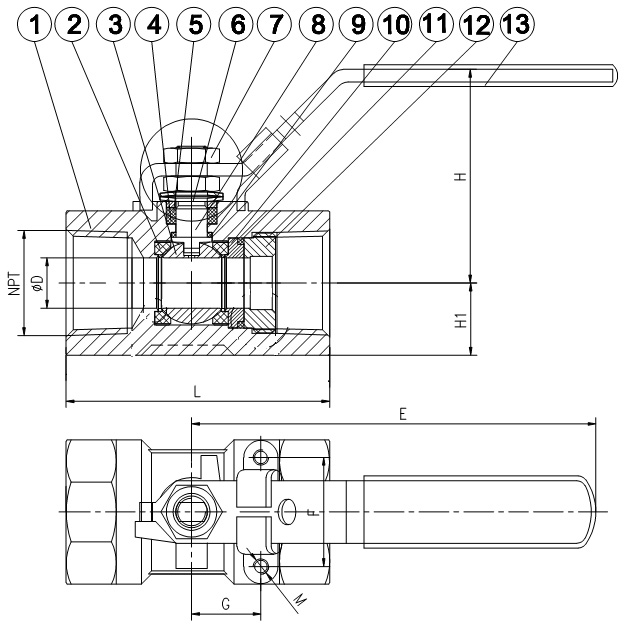

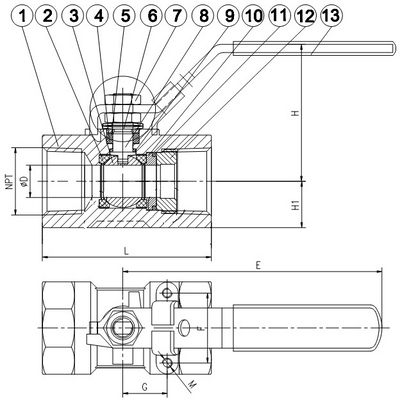

Item # | Size | L | H | H1 | D | E | M |
Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm |
32H979 | 1/4" | 2.32 | 58.93 | 1.73 | 43.94 | 0.53 | 13.46 | 0.36 | 9.14 | 4.37 | 111.00 | 10-24UNS |
32H980 | 3/8" | 2.32 | 58.93 | 1.73 | 43.94 | 0.53 | 13.46 | 0.36 | 9.14 | 4.37 | 111.00 | 10-24UNS |
32H981 | 1/2" | 2.63 | 66.80 | 1.73 | 43.94 | 0.53 | 13.46 | 0.36 | 9.14 | 4.37 | 111.00 | 10-24UNS |
32H982 | 3/4" | 2.79 | 70.87 | 1.87 | 47.50 | 0.66 | 16.76 | 0.49 | 12.45 | 4.37 | 111.00 | 10-24UNS |
32H983 | 1" | 3.34 | 84.84 | 2.36 | 59.94 | 0.80 | 20.32 | 0.62 | 15.75 | 5.57 | 141.48 | 10-24UNS |
32H984 | 1-1/4" | 3.70 | 93.98 | 2.55 | 64.77 | 0.98 | 24.89 | 0.78 | 19.81 | 5.57 | 141.48 | 10-24UNS |
32H985 | 1-1/2" | 3.93 | 99.82 | 2.79 | 70.87 | 1.12 | 28.45 | 0.96 | 24.38 | 6.35 | 161.29 | 1/4-20UNS |
32H986 | 2" | 4.64 | 117.86 | 3.01 | 76.45 | 1.37 | 34.80 | 1.25 | 31.75 | 6.35 | 161.29 | 1/4-20UNS |
Part # | Part Name | Material |
1 | Body | 316 Stainless Steel |
2 | Seat | RPTFE |
3 | Ball | 316 Stainless Steel |
4 | Stem Packing | Graphite |
5 | Gland Bush | 304 Stainless Steel |
6 | Washer | Carbon Steel |
7 | Nut | Carbon Steel |
8 | Stem | 316 Stainless Steel |
9 | Thrust Washer | RPTFE |
10 | Seat | 316 Stainless Steel |
11 | Joint Gasket | Graphite |
12 | Retainer | 316 Stainless Steel |
13 | Handle | Carbon Steel with PVC Grip |
