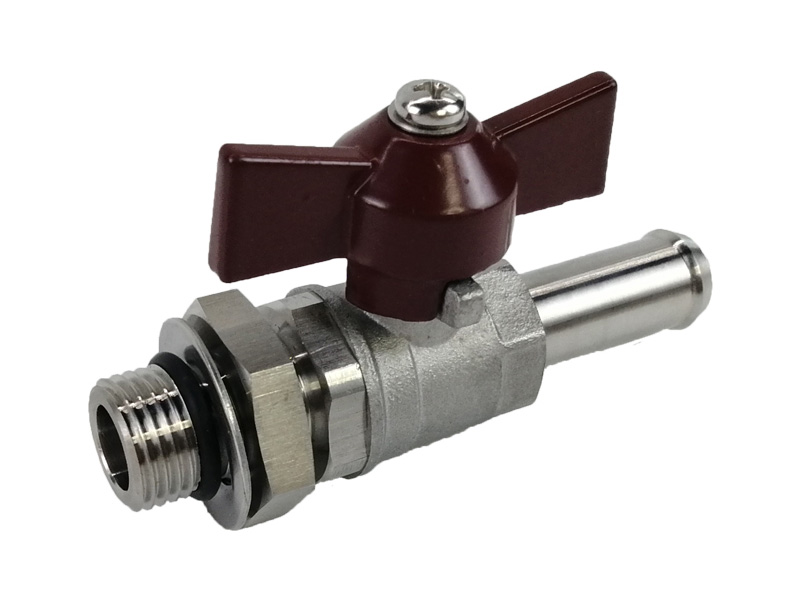

Hydraulic Tank Drain Valve, Stainless Steel Body
Stainless Steel Hydraulic Tank Drain Valve

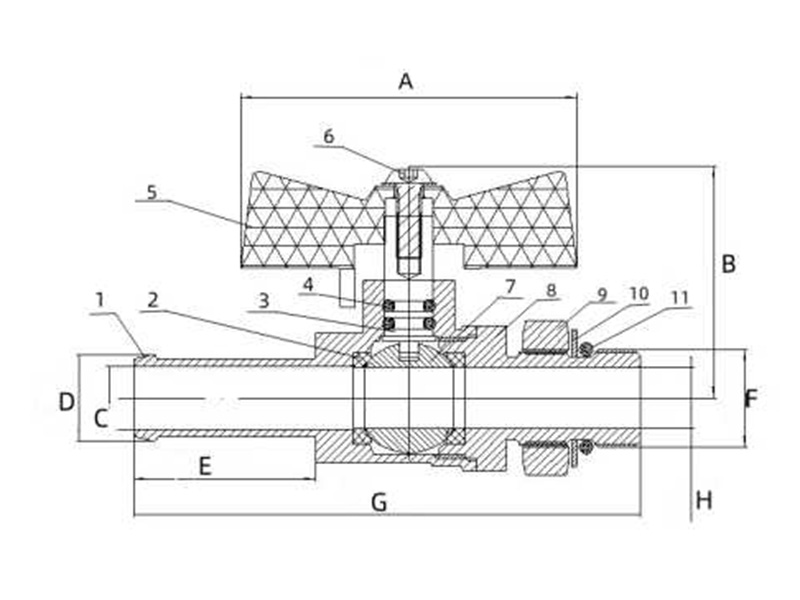

Part No. | A (In) | B (In) | C (In) | D (In) | E (In) | F | G (In) | H (In) | Carton Qty. | Wt. (lbs.) |
AXE90834 | 2.01 | 1.54 | 0.39 | 0.56 | 1.17 | M16*1.5 | 3.27 | 0.39 | | |
Part No. | Description | Material |
1 | Body | Stainless Steel |
2 | Seat | PTFE |
3 | Stem | Stainless Steel |
4 | O-Ring | Viton |
5 | Handle | Zinc alloy |
6 | Screw | Carbon Steel |
7 | Ball | Stainless Steel |
8 | Cap | Stainless Steel |
9 | Nut | Stainless Steel |
10 | Washer | Brass |
11 | O-Ring | Viton |
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
