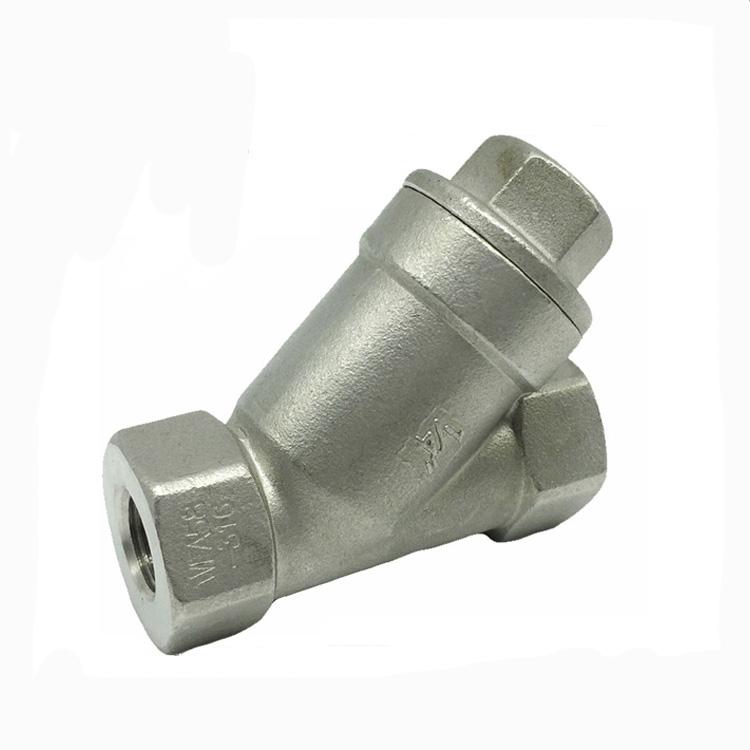

Stainless Steel Y-Spring Check Valve
- Working pressure: 1480PSI@100 °F, 1010PSI@750°F Stream
- Body: 304/316 Stainless steel, female x female NPT threaded ends
- Protect plumbing system against dirt, rust, and debris
- Stainless steel strainers are corrosion-resistant
- Suitable for high-temperature and high-pressure applications

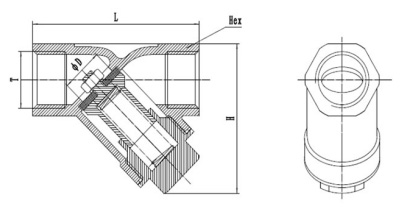

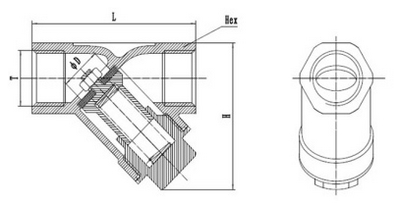

Specifications
Inch/Metric(mm)
Item # | Size | D | H | L | S | Weight |
Inch | mm | Inch | mm | Inch | mm | Inch | mm | Kg |
SSCV1 | 1/4” | 0.59 | 15 | 2.28 | 58 | 2.56 | 65 | 1.02 | 26 | 0.33 |
SSCV2 | 3/8” | 0.59 | 15 | 2.28 | 58 | 2.56 | 65 | 1.02 | 26 | 0.3 |
SSCV3 | 1/2” | 0.59 | 15 | 2.28 | 58 | 2.56 | 65 | 1.02 | 26 | 0.262 |
SSCV4 | 3/4” | 0.79 | 20 | 2.68 | 68 | 3.09 | 78.5 | 1.30 | 33 | 0.425 |
SSCV5 | 1” | 0.98 | 25 | 3.46 | 88 | 3.50 | 89 | 1.61 | 41 | 0.77 |
SSCV6 | 1-1/4” | 1.26 | 32 | 3.94 | 100 | 4.13 | 105 | 1.93 | 49 | 1.125 |
SSCV7 | 1-1/2” | 1.57 | 40 | 4.25 | 108 | 4.72 | 120 | 2.20 | 56 | 1.43 |
SSCV8 | 2 | 1.97 | 50 | 5.12 | 130 | 5.51 | 140 | 2.72 | 69 | 2.15 |
Part # | Part Name | Material |
1 | Body | CF8/CF8M 304/316 |
2 | Nut | 304 |
3 | Disc Seat | PTFE |
4 | Disc | CF8/CF8M 304/316 |
5 | Spring | 304 |
6 | Gasket | PTFE |
7 | Bonnet | CF8/CF8M 304/316 |
