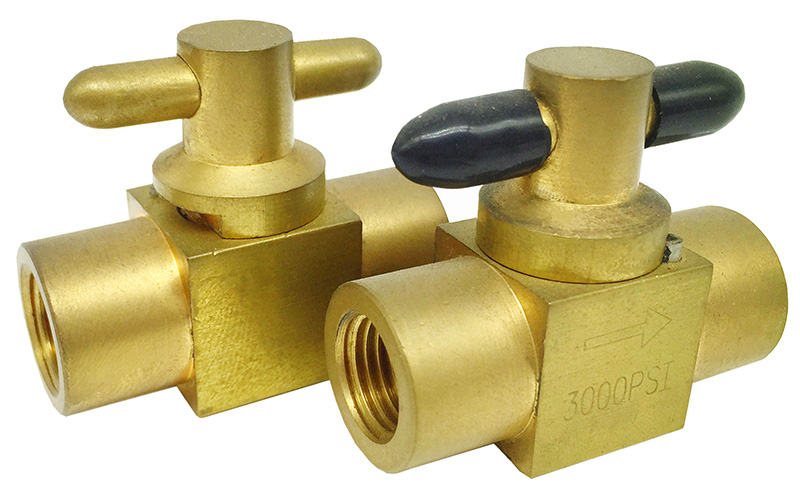

316 Stainless Steel High Pressure Plug Valve
Pressure Ratings
- Normal flow direction: 3000 psi (207 bar) CWP
- Reverse flow direction: 150 psi (10 bar)
- Downstream vent option: 150 psi (10 bar)

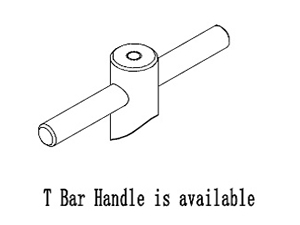

Specifications
Inch/Metric(mm)

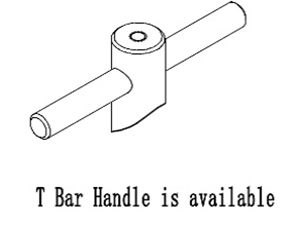

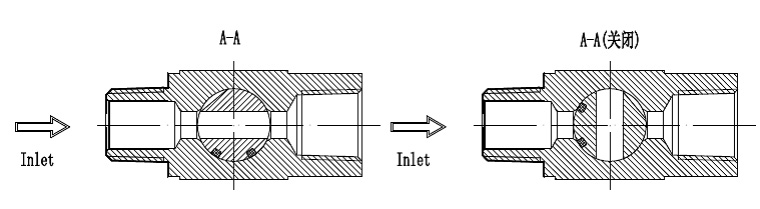

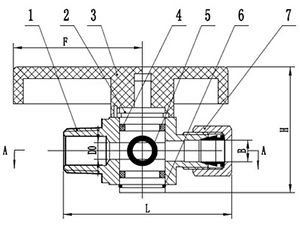

| Item # | Inlet Size | DO | B | H | F | L |
| Inch | mm | Inch | Inch | mm | Inch | mm | Inch | mm |
| | 1/8 | 0.172 | 4.37 | 1/8 | 1.64 | 41.66 | 2.00 | 50.80 | 1.78 | 45.21 |
| | 1/4 | 0.172 | 4.37 | 1/4 | 1.64 | 41.66 | 2.00 | 50.80 | 2.09 | 53.09 |
| | 1/4 | 0.283 | 7.19 | 1/4 | 2.18 | 55.37 | 2.63 | 66.80 | 2.38 | 60.45 |
| | 1/2 | 0.283 | 7.19 | 1/2 | 2.18 | 55.37 | 2.63 | 66.80 | 2.88 | 73.15 |

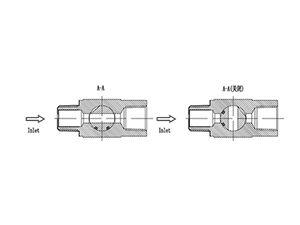

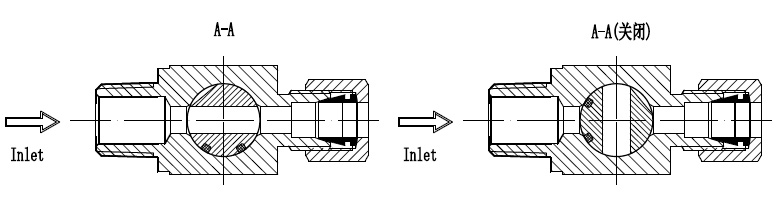

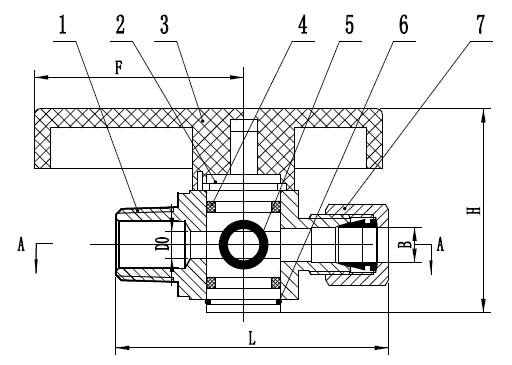

| Part # | Part Name | Stainless steel | Brass |
| 1 | Body | 316 S.S | Hpb58-3A |
| 2 | Stem | 316 S.S | Hpb58-3A |
| 3 | Handle | Nylon |
| 4 | O-Ring | Viton |
| 5 | O-Ring | Viton |
| 6 | Remaining Ring | Stainless steel |
| 7 | LOK-Fittings | 316 S.S | Brass |
Specifications
Inch/Metric(mm)

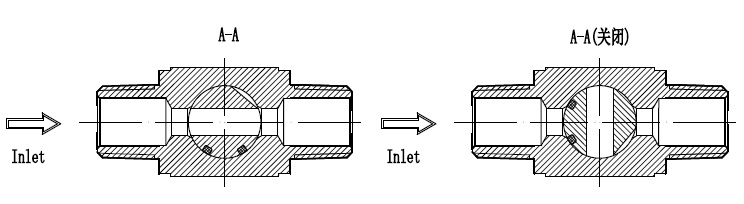

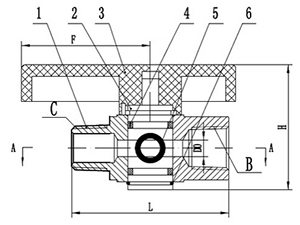

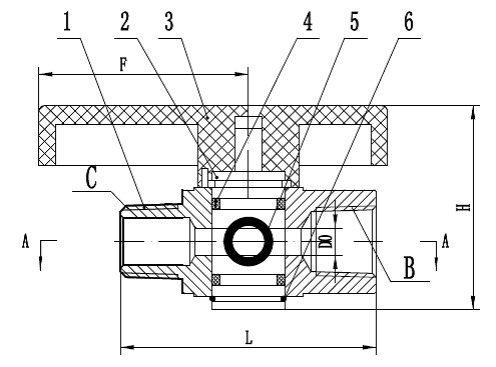

Item #
| Inlet Size(B)
| DO | C | H | F | L |
| Inch | mm | Inch | Inch | mm | Inch | mm | Inch | mm |
| | 1/4 | 0.172 | 4.37 | 1/4 | 1.64 | 41.66 | 2.00 | 50.80 | 2.00 | 50.80 |
| Part # | Part Name | Stainless Steel | Brass |
| 1 | Body | 316 S.S | Hpb58-3A |
| 2 | Stem | 316 S.S | Hpb58-3A |
| 3 | Handle | Nylon |
| 4 | O-Ring | Viton |
| 5 | O-Ring | Viton |
| 6 | Remaining Ring | Stainless Steel |

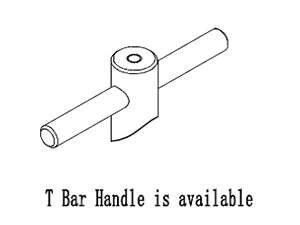

Specifications
Inch/Metric(mm)

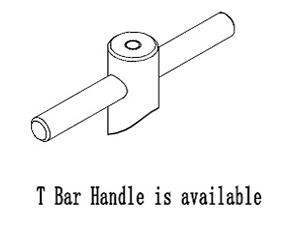

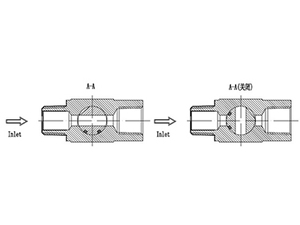

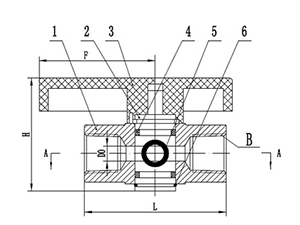

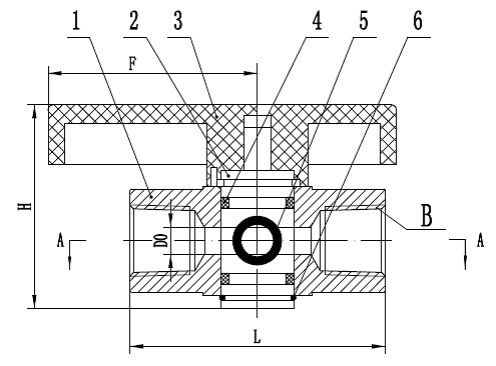

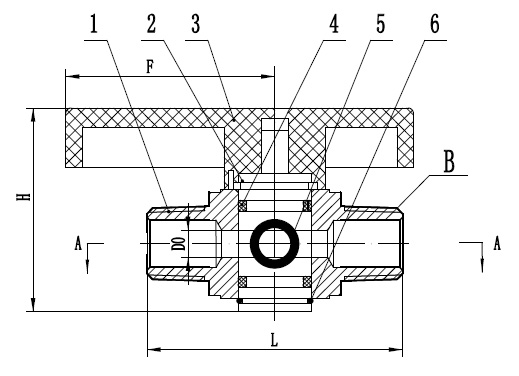

| Item # | Inlet Size | DO | B | H | F | L |
| Inch | mm | Inch | Inch | mm | Inch | mm | Inch | mm |
| | 1/8 | 0.172 | 4.37 | 1/8 | 1.64 | 41.66 | 2.00 | 50.80 | 1.53 | 38.86 |
| | 1/4 | 0.172 | 4.37 | 1/4 | 1.64 | 41.66 | 2.00 | 50.80 | 1.90 | 48.26 |
| | 1/2 | 0.283 | 7.19 | 1/2 | 2.18 | 55.37 | 2.63 | 66.80 | 2.64 | 67.06 |
| Part # | Part Name | Stainless Steel | Brass |
| 1 | Body | 316 S.S | Hpb58-3A |
| 2 | Stem | 316 S.S | Hpb58-3A |
| 3 | Handle | Nylon |
| 4 | O-Ring | Viton |
| 5 | O-Ring | Viton |
| 6 | Remaining Ring | Stainless Steel |

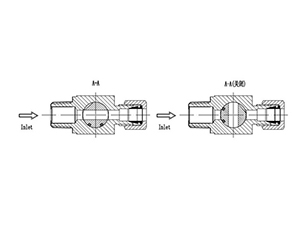

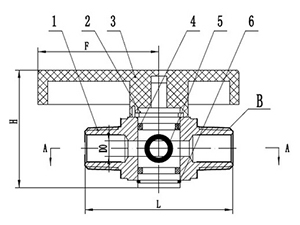

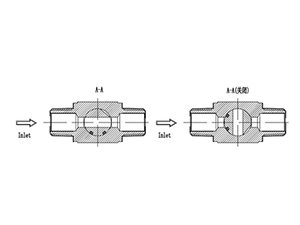

Specifications
Inch/Metric(mm)
Item #
| Inlet Size
| DO | B | H | F | L |
| Inch | mm | Inch | Inch | mm | Inch | mm | Inch | mm |
| | 1/4 | 0.172 | 4.37 | 1/4 | 1.64 | 41.66 | 2.00 | 50.80 | 2.03 | 51.56 |
| Part # | Part Name | Stainless steel | Brass |
| 1 | Body | 316 S.S | Hpb58-3A |
| 2 | Stem | 316 S.S | Hpb58-3A |
| 3 | Handle | Nylon |
| 4 | O-Ring | Viton |
| 5 | O-Ring | Viton |
| 6 | Remaining Ring | Stainless steel |
| 7 | LOK-Fittings | 316 S.S | Brass |
