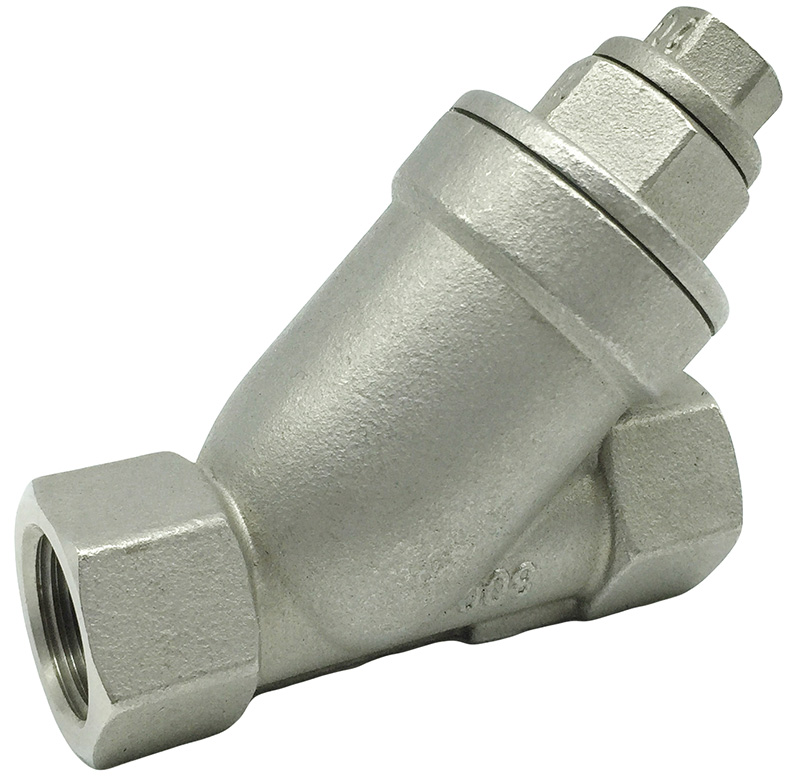

Stainless Steel Y Strainer
- Made using cast stainless steel, compact design, 600PSI WOG for the sizes up to 2"
- Temperature Range: -20 to 425 °F (-30 +220℃)
- 304 Stainless steel 50 mesh screen 1/4" - 1", 20 mesh screen above 1"
Specifications
Inch/Metric(mm)
Item #

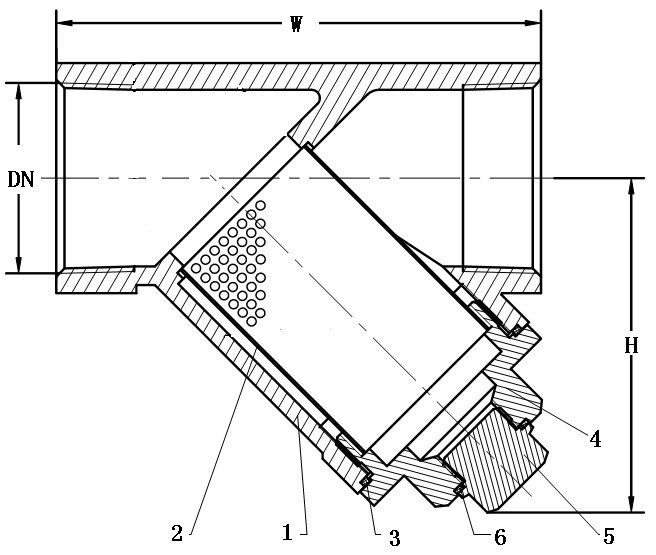

| Size | H | W |
| | | Inch | mm | Inch | mm |
| YBS-25 | 1/4" | 1.97 | 50 | 2.68 | 68 |
| YBS-33 | 3/8" | 1.97 | 50 | 2.68 | 68 |
| YBS-50 | 1/2" | 1.97 | 50 | 2.68 | 68 |
| YBS-75 | 3/4" | 2.36 | 59 | 3.92 | 100 |
| YBS-100 | 1" | 2.64 | 67 | 4.53 | 115 |
| YBS-125 | 1-1/4" | 3.19 | 81 | 5.39 | 137 |
| YBS-150 | 1-1/2" | 3.43 | 87 | 6.26 | 159 |
| YBS-200 | 2" | 4.29 | 108 | 7.48 | 190 |
| Part# | Part Name | Material |
| 1 | Body | Brass/Stainless Steel |
| 2 | Screen | Stainless Steel |
| 3 | Seal | Teflon |
| 4 | Cap | Brass |
| 5 | Plug | Brass |
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
