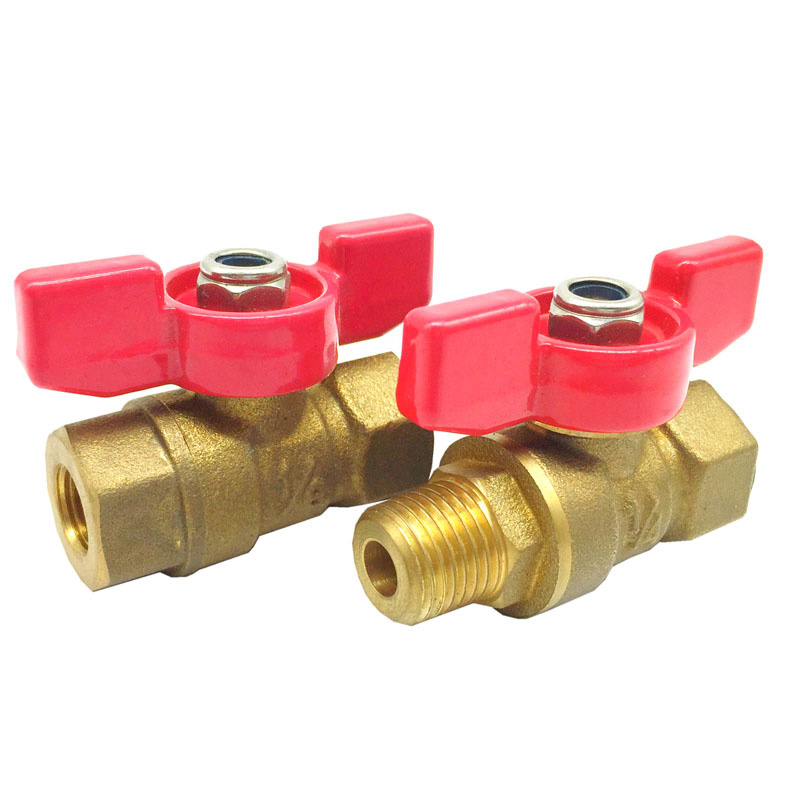

MMTH & MFTH Mini Brass Ball Valve
- Pressure ratings: 600 PSI (WOG), 150 PSI (WSP) Service
- Temperature Range: -20° F to + 370°F (-30° C to + 190°C)
- 3/4" reduced port
- Blow-out proof brass stem
- Rubber seals

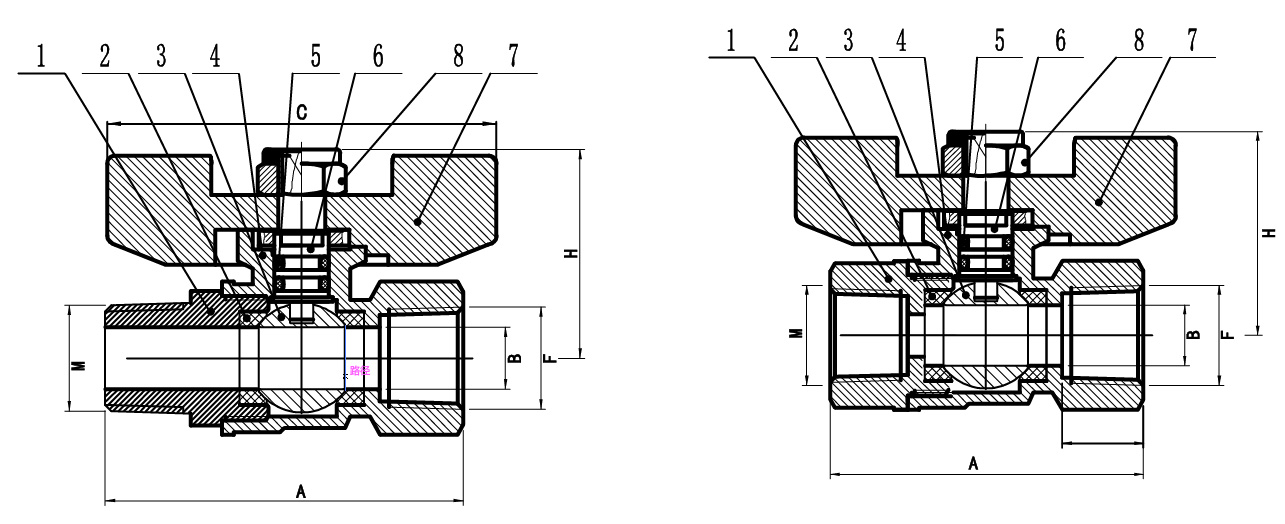

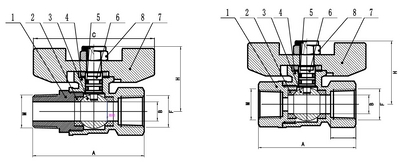

Inch/Metric(mm)
Item # | A | B | C | F | H | Wt. (Lbs.) |
inch | mm | inch | mm | inch | mm | inch | mm |
MMTH-12 | 1.8 | 45.72 | 0.24 | 6.10 | 1.96 | 49.78 | 1/8" M x F | 1.10 | 27.94 | 0.24 |
MMTH-25 | 1.8 | 45.72 | 0.24 | 6.10 | 1.96 | 49.78 | 1/4" M x F | 1.10 | 27.94 | 0.19 |
MMTH-38 | 2 | 50.8 | 0.4 | 10.16 | 1.96 | 49.78 | 3/8" M x F | 1.26 | 32.00 | 0.28 |
MMTH-50 | 2.4 | 60.96 | 0.5 | 12.70 | 2.48 | 62.99 | 1/2" M x F | 1.45 | 36.83 | 0.43 |
MMTH-75 | 2.7 | 68.58 | 0.66 | 16.76 | 2.48 | 62.99 | 3/4" M x F | 1.65 | 41.91 | 0.53 |
MFTH-12 | 1.65 | 41.91 | 0.24 | 6.10 | 1.96 | 49.78 | 1/8" F x F | 1.10 | 27.94 | 0.26 |
MFTH-25 | 1.65 | 41.91 | 0.24 | 6.10 | 1.96 | 49.78 | 1/4" F x F | 1.10 | 27.94 | 0.19 |
Weights are ± 3%
Part # | Part Name | Material |
1 | Cap | Brass |
2 | Seat | PTFE |
3 | Ball | Brass |
4 | Body | Brass |
5 | O-Ring | Viton |
6 | Stem | Brass |
7 | Handle | Zinc Alloying |
8 | Nut | Steel |
