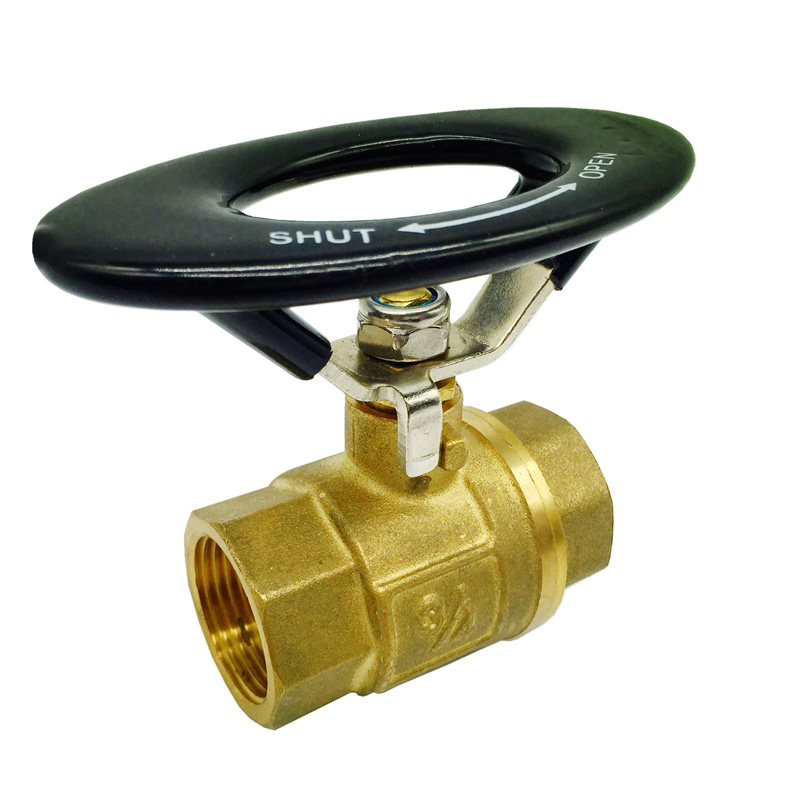

Brass Ball Valve with Oval Handle
- Working pressure: 1/4" - 1" 600 PSI (WOG), 150 PSI (WSP) Service
- Temperature range: -40 °F to 365 °F (-40 °C to +185 °C)
- Suitable for vacuum service up to 29" Hg

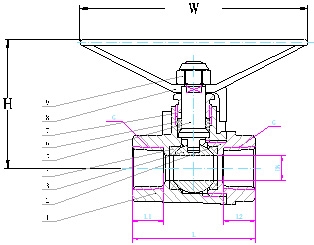

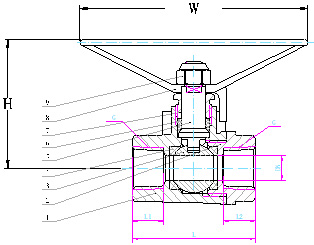

Inch/Metric(mm)
| Item # |
G |
L |
L1 |
L2 |
|
H |
W |
| inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
| 1WMP4 |
1/4 |
6.35 |
1.61 |
40.89 |
0.41 |
10.41 |
0.41 |
10.41 |
1.97 |
50.08 |
2.95 |
74.93 |
|
| 1WMP5 |
3/8 |
9.53 |
1.71 |
43.43 |
0.41 |
10.41 |
0.41 |
10.41 |
2.01 |
51.05 |
2.95 |
74.93 |
|
| 1WMP6 |
1/2 |
12.7 |
2.19 |
55.63 |
0.55 |
13.97 |
0.59 |
14.99 |
2.48 |
62.99 |
3.82 |
97.03 |
|
| 1WMP7 |
3/4 |
19.05 |
2.36 |
59.95 |
0.53 |
13.46 |
0.59 |
14.99 |
2.56 |
65.02 |
3.82 |
97.03 |
|
| 1WMP8 |
1 |
25.4 |
2.89 |
73.40 |
0.67 |
17.02 |
0.67 |
17.02 |
2.95 |
74.93 |
3.94 |
100.08 |
| Parts # | Part Name | Material |
| 1 | Body | Brass |
| 2 | Cap | Brass |
| 3 | Ball | Brass |
| 4 | Seat | PTFE |
| 5 | Stem | Brass |
| 6 | Packing | PTFE |
| 7 | Gland Bonnet | Brass |
| 8 | Handle | Steel |
| 9 | Handle Nut | Steel |
