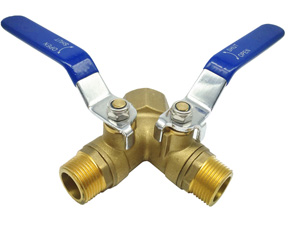

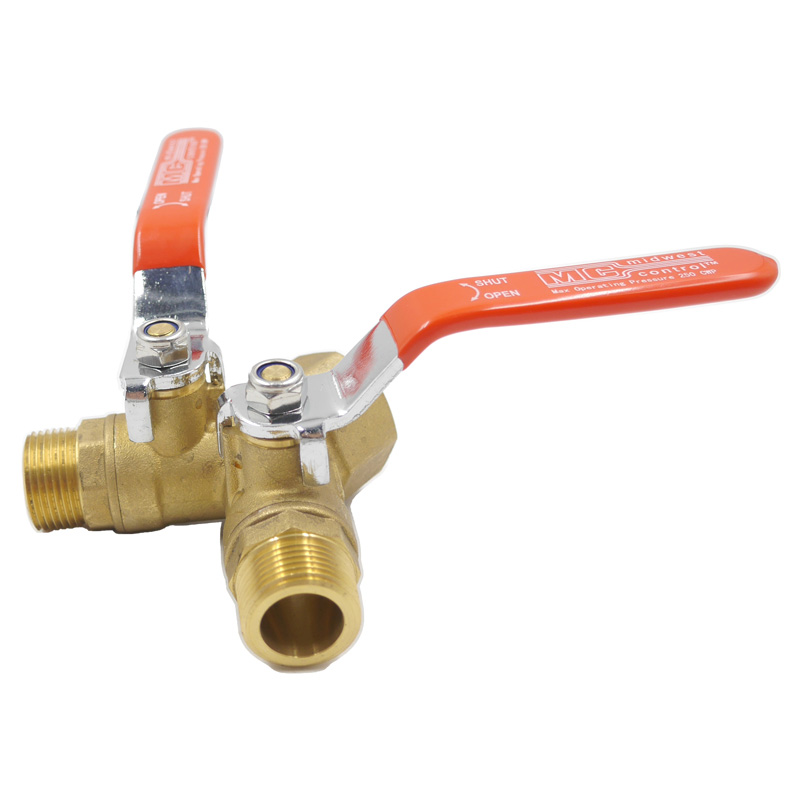

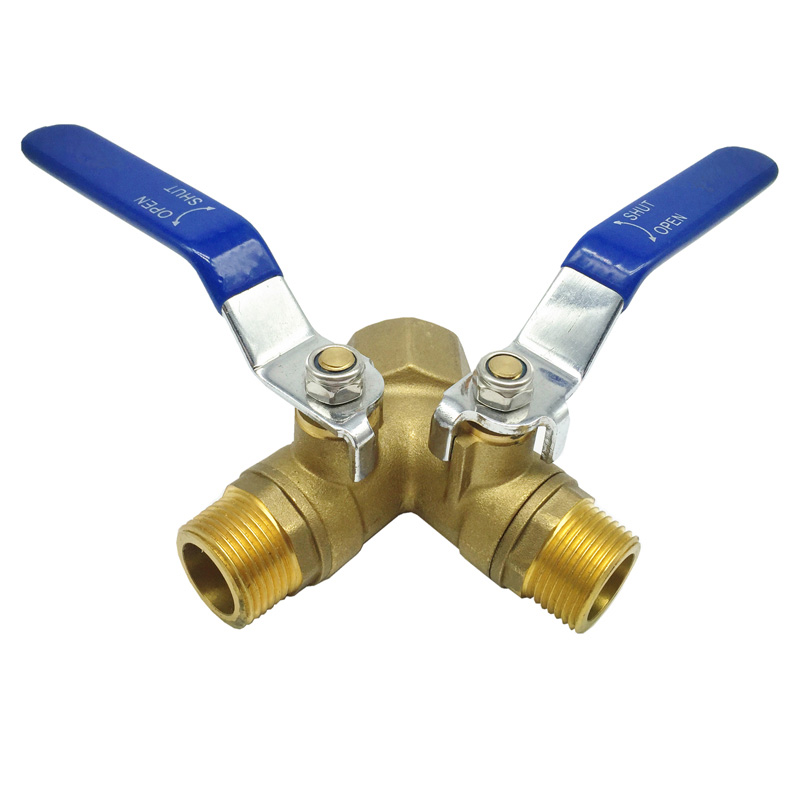

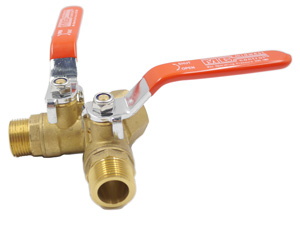

3-way Wye Brass Ball Valve

  • 3-Way Brass Diverting Ball Valve, L Flow
  • 3-Way Brass Diverting Ball Valve, L Flow
Inquiry
  • Max. working pressure: W.O.G. (water, oil, inert gas):
    - Unvented Valve: 600PSI@70°F
    - Vented Valve: 250PSI@70°F
  • W.S.P. (working steam pressure):
    - Unvented Valve: 150PSI@365°F
    - Vented Valve: Not rated
  • Vacuum rating: 29" Hg
  • Temperature range: -40 °F to 365 °F (-40 °C to + 185 °C)
  • Designed for the portable air compressor industry, these 3-way Wye brass ball valves control the flow of water, oil, and inert gases in two directions and are great for mixing and diverting.

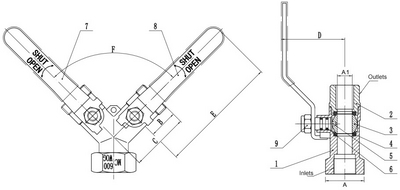

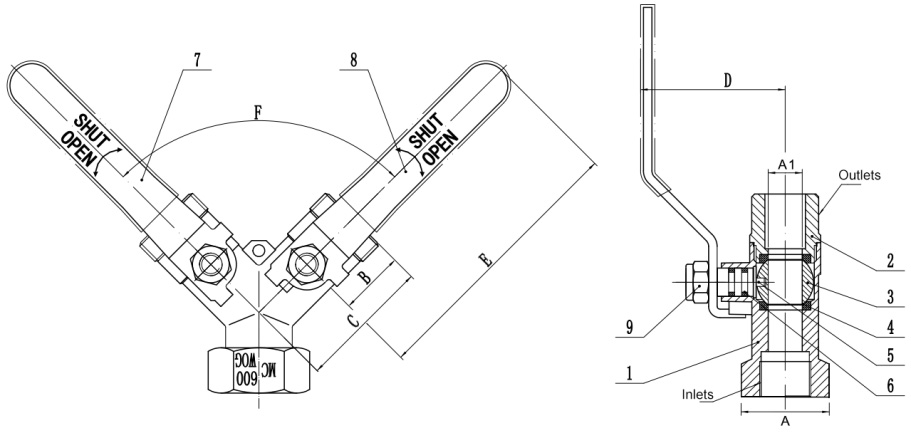

Inch/Metric(mm)
Item #
 Inlet Size Outlet Size A1 (In) C (In) D (In) E F
Inch mm Inch mm Inch mm Inch mm
MTW-7510 1" NPT Female 3/4" NPT Male 0.59 14.99 2.5 63.5 2.05 52.07 5.18 131.57 90 Degree
MTW-7550 1/2" NPT Female 3/4" NPT Male 0.39 10 2.54 64.5 2.01 51 4.8 122 90 Degree
MTW-5050 1/2" NPT Female 1/2" NPT Male 0.39 10 2.54 64.5 2.01 51 4.8 122 90 Degree
3-Way Brass Diverting Ball Valve, L Flow
Part # Part Name Material
1 Body Brass
2 Seat PTFE
3 Ball Brass
4 Cap Brass
5 Stem Brass
6 O-ring Rubber
7 Handle Steel
8 Nut S.S
9 Handle Steel
