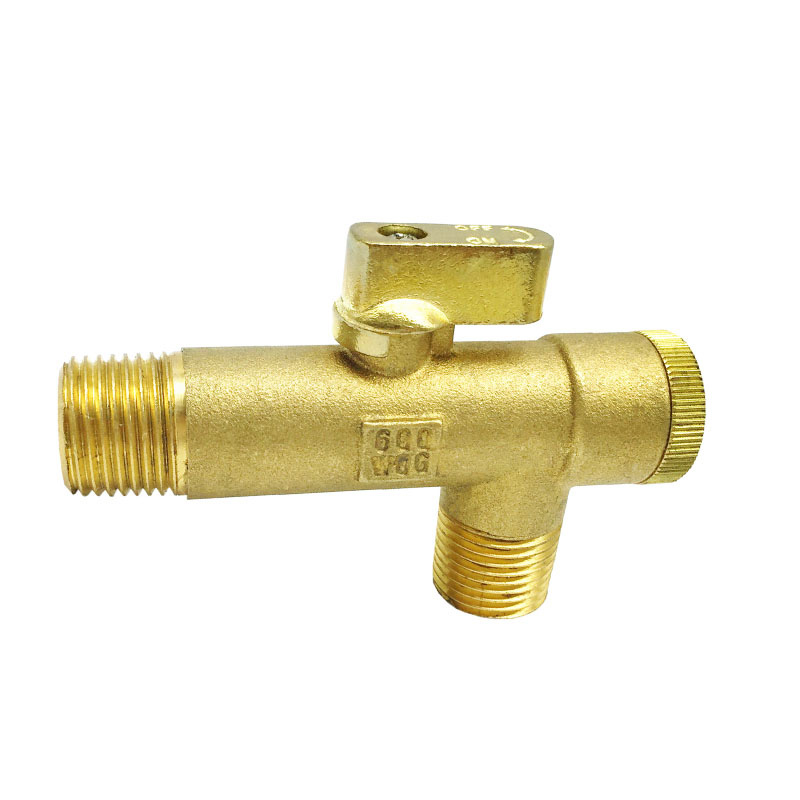

Brass Ball Valve Strainer Combo-- Heavier Duty
- Working pressure: 600 PSI (WOG), 150 PSI (WSP)
- Temperature range: -4 °F to 200 °F ( -20 °C to +100 °C)
- Solid brass body with stainless steel 50 mesh screen
- Chrome plated ball
Inch/Metric(mm)
Item #
| Size (In)
| A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) |
| BPS-5025 | 1/2 x 1/4 | 1/4 Female | 1/2 Male | 1/4 Male | 0.39 | 3.74 | 1.33 | 1.12 | 1.18 |
| BPS-5033 | 1/2 x 3/8 | 3/8 Male |
| BPS-5050 | 1/2 x 1/2 | 1/2 Male |

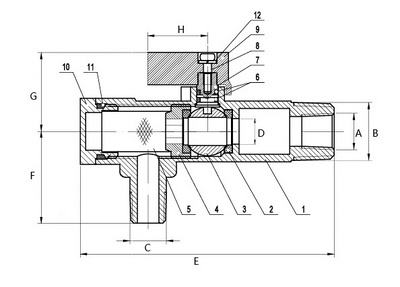

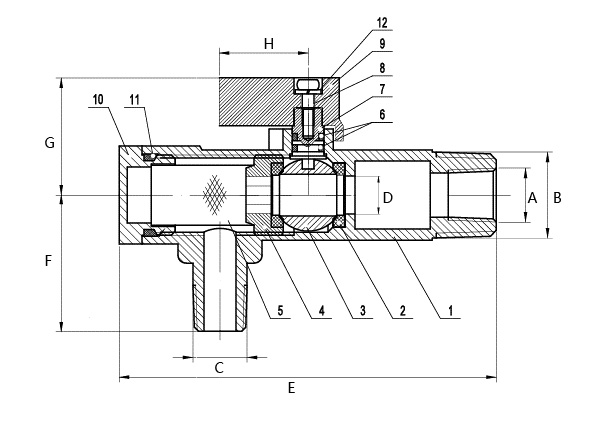

| Part # | Part Name | Material |
| 1 | Body | Brass |
| 2 | Ball Seats | PTFE |
| 3 | Ball | Brass |
| 4 | Seat Retainer | Brass |
| 5 | Screen | S.S |
| 6 | O-Ring | NBR |
| 7 | Stem | Brass |
| 8 | Nut | S.S |
| 9 | Handle | Zinc Alloy |
| 10 | Cap | Brass |
| 11 | O-Ring | Steel |
| 12 | Gasket | S.S |
