Working Pressure:
1500 PSI WOG for 1/8" to 1/4"
1000 PSI WOG for bottom port on 3/8" to 1/2", 600PSI WOG for side port on 3/8" and 1/2"
Vacuum rating: 29.92" Hg
Temperature range: -40 °F to +300 °F ( -40 °C to +150 °C)
Part #
Part Name
Material
9
Screw
Steel
8
Handle
Plastic
7
Panel Mount Nut
Brass
6
O-Rings
Viton
5
Stem
Brass
4
Ball
Chrome plated Brass
3
Ball Seats
PTFE
2
Caps
Brass
1
Body
Brass

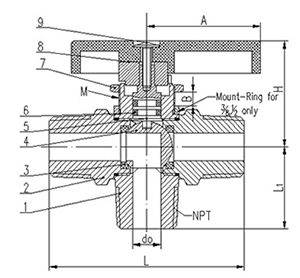

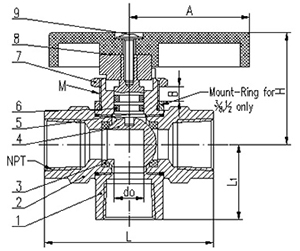

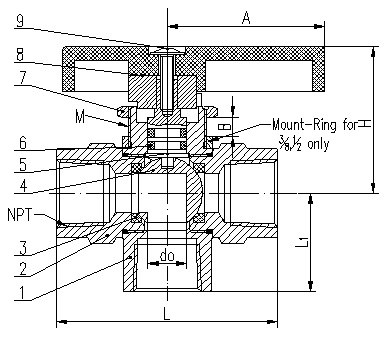

Female x Female

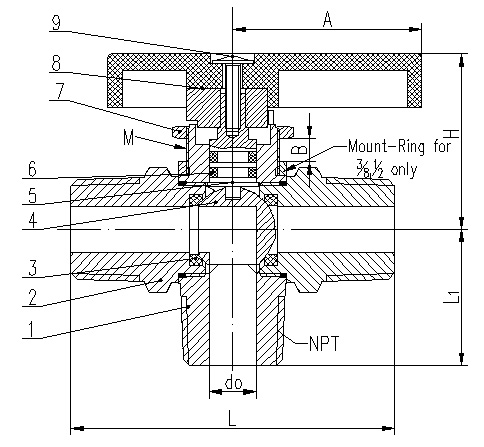

Male x Male
Inch/Metric(mm)
Item #
Size
Connections
L
L1
do
B (Max Panel Thickness)
A
H
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
1WMV8
1/2"
F x F
2.60
65.99
1.30
32.99
0.39
9.98
0.16
3.99
1.54
38.99
1.50
38.00
1WMV7
3/8"
F x F
2.13
53.98
0.94
23.98
0.39
9.98
0.16
3.99
1.54
38.99
1.42
35.99
1WMV6
1/4"
F x F
1.89
47.98
0.86
21.89
0.31
7.98
0.16
3.99
1.18
30.00
1.30
32.99
1WMV5
1/8"
F x F
1.89
47.98
0.86
21.89
0.24
5.99
0.16
3.99
1.18
30.00
1.30
32.99
1WMW3
1/2"
M x M
1.10
27.99
1.10
27.99
0.39
9.98
0.16
3.99
1.54
38.99
1.50
38.00
1WMW2
3/8"
M x M
2.48
62.99
1.04
26.49
0.39
9.98
0.16
3.99
1.54
38.99
1.42
35.99
1WMW1
1/4"
M x M
2.05
51.99
0.87
22.00
0.31
7.98
0.16
3.99
1.18
30.00
1.30
32.99
1WMV9
1/8"
M x M
1.97
49.99
0.86
21.89
0.24
5.99
0.16
3.99
1.18
30.00
1.30
32.99
