3-Way Wye-Style Brass Ball Valve, with Fire Hose Connections
- Working pressure: 200 PSI WOG
- Temperature range: -20 °F to +150 °F (-30 °C to +65 °C)
- Reduced port ball valve with PTFE seats
- Steel handle
Inch/Metric(mm)
Item # | Size | Threads |
1PZC6 | 2-1/2"F x 1-1/2"M x 1-1/2"M | NPHS |
1PZC7 | 2-1/2"F x 1-1/2"M x 1-1/2"M | NH |

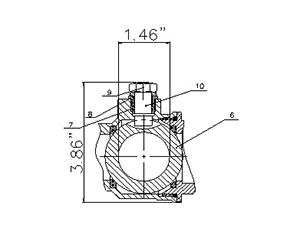

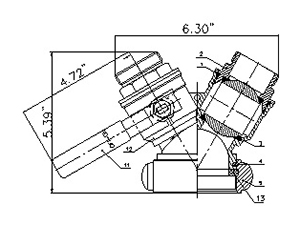

Part # | Part Name | Material |
1 | Joint Gasket | PTFE |
2 | Caps | Brass |
3 | Seat | PTFE |
4 | Spring | Steel |
5 | Inlet Nut | Brass |
6 | Ball | Brass |
7 | Packing | PTFE |
8 | Gland Bonnet | Brass |
9 | Nut | Brass |
10 | Stem | Brass |
11 | Handle | Steel |
12 | Body | Brass |
13 | Washer | Rubber |
