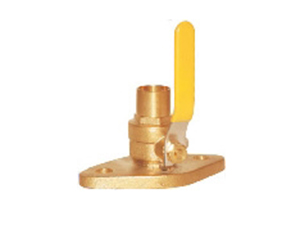

Full Port Ball Valve with Isolation Flange

  • Working pressure: 150 PSI
  • Temperature range: -4 °F to 250 °F (-20 °C to + 120 °C)
Item # Desc. & Spec. Image
III-242-50 Brass Flanged Ball Valve ,1/2" F NPT
Full Port Ball Valve with Isolation Flange
III-242-75 Brass Flanged Ball Valve, 3/4" F NPT
III-242-100 Brass Flanged Ball Valve,1" F NPT
III-242-125 Brass Flanged Ball Valve, 1-1/4" F NPT
III-242-150 Brass Flanged Ball Valve,1-1/2" F NPT
III-242-200 Brass Flanged Ball Valve, 2" F NPT
III-243-50 Brass Flanged Ball Valve,1/2" C x C
Full Port Ball Valve with Isolation Flange
III-243-75 Brass Flanged Ball Valve, 3/4" C x C
III-243-100 Brass Flanged Ball Valve, 1" C x C
III-243-125 Brass Flanged Ball Valve,1-1/4" C x C
III-243-150 Brass Flanged Ball Valve,1-1/2" C x C

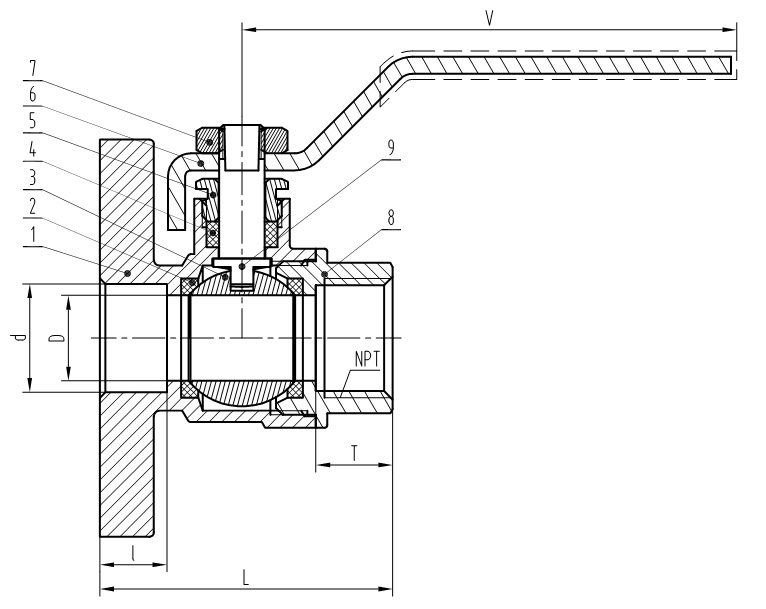

Part # Part Name Material
1 Body Brass
2 Ball Seat PTFE
3 Ball Brass
4 Stem Packing PTFE
5 Gland Bonnet Brass
6 Handle Steel
7 Nut Brass
8 Cap Brass
9 Stem Brass
Full Port Ball Valve with Isolation Flange
Inch/Metric(mm)
Item #
 Size
 L d D V
Inch mm Inch mm Inch mm Inch mm
III-242-50 1/2" NPT 1.98 50.29 1/2" 12.70 0.55 13.97 2.87 72.90
III-242-75 3/4" NPT 2.18 55.37 3/4" 19.05 0.76 19.30 2.87 72.90
III-242-100 1" NPT 2.48 62.99 1" 25.40 0.96 24.38 2.87 72.90
III-242-125 1-1/4" NPT 2.84 72.14 1-1/4" 31.75 1.18 29.97 4.00 101.60
III-242-150 1-1/2" NPT 3.23 82.04 1-1/2" 38.10 1.49 37.85 4.15 105.41
III-242-200 2" NPT 3.56 90.42 2" 50.80 1.85 46.99 4.15 105.41

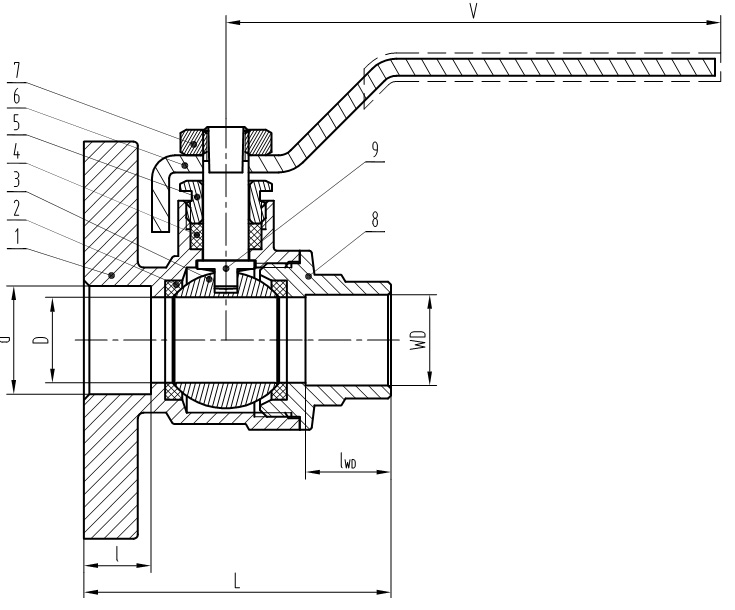

Part # Part Name Material
1 Body Brass
2 Ball Seat PTFE
3 Ball Brass
4 Stem Packing PTFE
5 Gland Bonnet Brass
6 Handle Steel
7 Nut Brass
8 Cap Brass
9 Stem Brass
Full Port Ball Valve with Isolation Flange
Inch/Metric(mm)
Item #
 Size
 L d D V
Inch mm Inch mm Inch mm Inch mm
III-243-50 1/2" NPT 2.22 56.39 1/2" 12.70 0.50 12.70 2.87 72.90
III-243-75 3/4" NPT 2.61 66.29 3/4" 19.05 0.75 19.05 2.87 72.90
III-243-100 1" NPT 3.05 77.47 1" 25.40 0.90 22.86 2.87 72.90
III-243-125 1-1/4" NPT 3.44 87.38 1-1/4" 31.75 0.97 24.64 4.00 101.60
III-243-150 1-1/2" NPT 3.92 99.57 1-1/2" 38.10 1.09 27.69 4.15 105.41
III-243-200 2" NPT 4.20 106.68 2" 50.80 1.34 34.04 4.15 105.41
