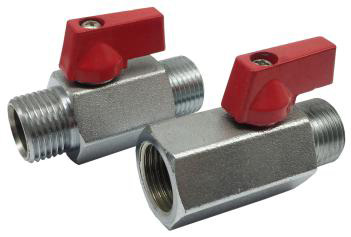

Economy Mini Ball Valve
- Working pressure: 450 PSI
- Temperature Range: -4 ° F to +250 °F (-20 °C to +120 °C)
- Connection: male x male or male x female
- Aluminum cast handle and with 20mm hex body
Inch/Metric(mm)
Item # | Size | W | D | L | L1 | H |
370-1813 | 1/4" | 1/4" BSPP, MxF | 0.31/8 | 1.57/40 | 0.91/23 | 1.14/29 |
QM3351-0898 | 1/2" | 1/2"BSPP,MxF | 0.39/10 | 2.32/59 | 0.91/23 | 1.26/31.9 |
QM335-2834 | 1/2" | 1/2"BSPP,MxM | 0.39/10 | 2.42/61.5 | 0.91/23 | 1.26/31.9 |

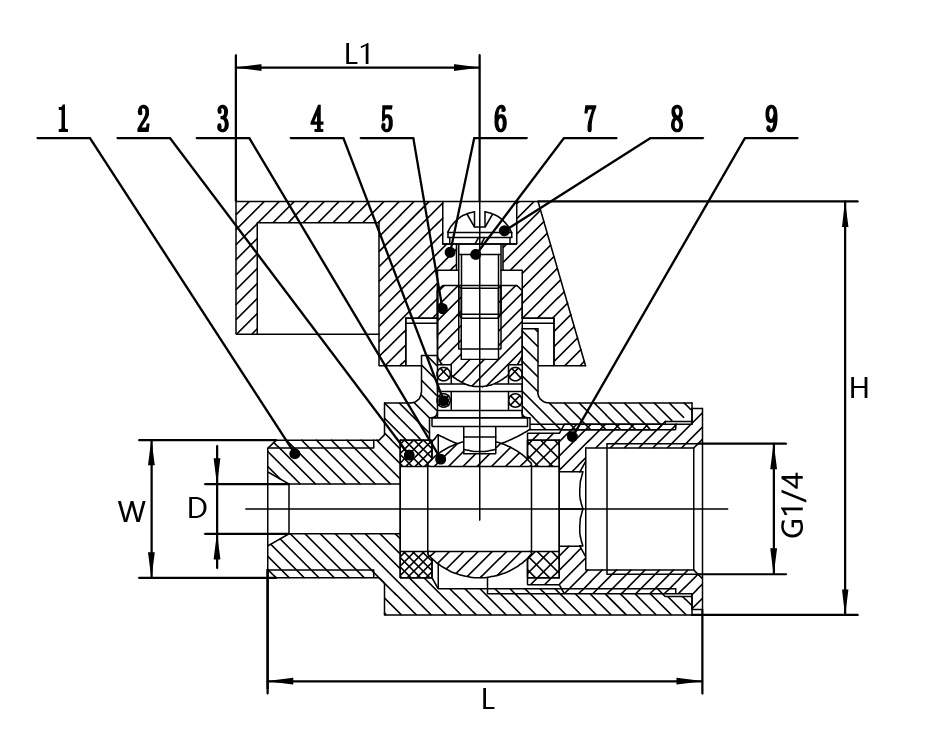

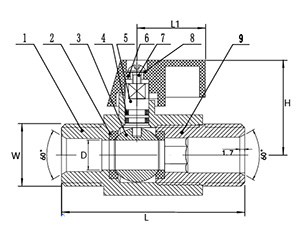

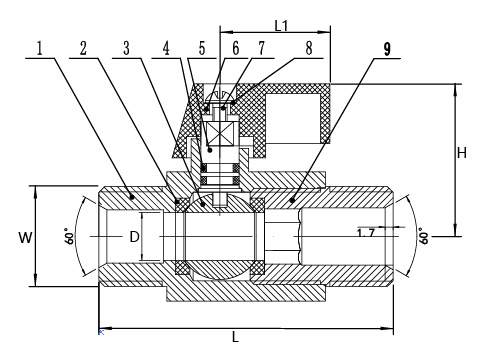

Part # | Part Name | Q'ty | Material |
1 | Body | 1 | Brass |
2 | Seat | 2 | PTFE |
3 | Ball | 1 | Brass |
4 | O-Ring | 2 | NBR |
5 | Stem | 1 | Brass |
6 | Handle | 1 | Aluminum cast |
7 | Screw | 1 | S.S |
8 | Spring Washer | 1 | 65Mn |
9 | Cap | 1 | Brass |
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
