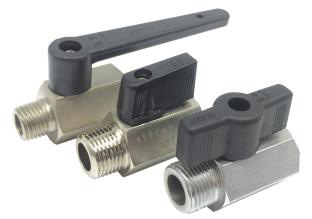

450 PSI Brass Mini Ball Valve

  • 450 PSI Brass Mini Ball Valve
Inquiry
  • Working pressure: 450PSI
  • Temperature Range: -20°F to 370°F (-30°C to +190°C)
  • Double seals allow valve to be operated in both directions
  • Available with three kinds of plastic or Zinc Alloy lever - wedge, T and L-shaped
Inch/Metric(mm)
Item # Size L D d S W H
CMV-12-00 1/8 1.55/39.37 0.81/20.57 0.24/6.10 0.49/12.45 0.79/20.07 1.02/25.91
CMV-25-00 1/4 1.71/43.43 0.89/22.61 0.31/7.87 0.55/13.97 0.79/20.07 1.02/25.91
CMV-33-00 3/8 1.71/43.43 0.89/22.61 0.31/7.87 0.55/13.97 0.79/20.07 1.02/25.91
CMV-50-00 1/2 2.11/53.59 0.63/16.00 0.39/9.91 0.67/17.02 0.79/20.07 1.1/27.94

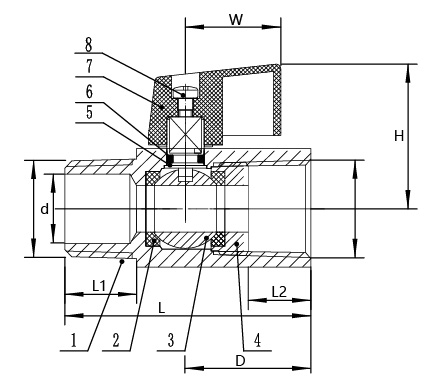

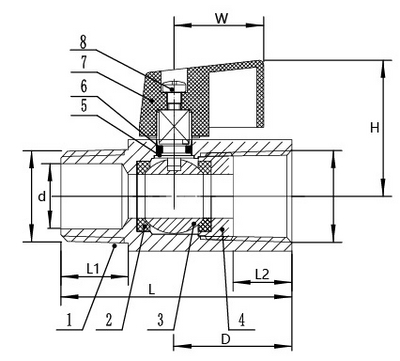

Male x Female
450 PSI Brass Mini Ball Valve
Part # Part Name Material
1 Body Brass
2 Seat PTFE
3 Ball Brass
4 Cap Brass
5 Stem Brass
6 O-Ring FKM
7 Handle Plastic or Zinc Alloy
8 Screw S.S
Inch/Metric(mm)
Item # Size L D d S W H
CBV-12-00 1/8 1.55/39.37 0.81/20.57 0.24/6.10 0.49/12.45 0.79/20.07 1.02/25.91
CBV-25-00 1/4 1.71/43.43 0.89/22.61 0.31/7.87 0.55/13.97 0.79/20.07 1.02/25.91
CBV-33-00 3/8 1.71/43.43 0.89/22.61 0.31/7.87 0.55/13.97 0.79/20.07 1.02/25.91
CBV-50-00 1/2 2.11/53.59 0.63/16.00 0.39/9.91 0.67/17.02 0.79/20.07 1.1/27.94

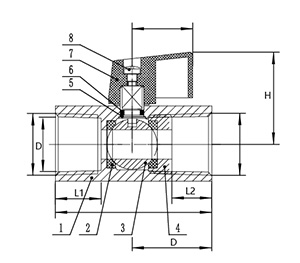

Female x Female
450 PSI Brass Mini Ball Valve
Part # Part Name Material
1 Body Brass
2 Seat PTFE
3 Ball Brass
4 Cap Brass
5 Stem Brass
6 O-Ring FKM
7 Handle Plastic
8 Screw S.S
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
