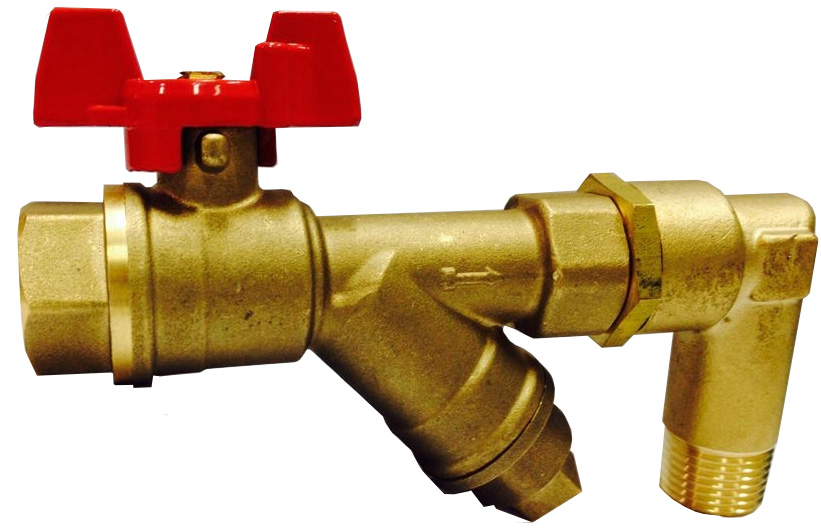

Brass Y Strainer/Ball Valve Combination

  • Brass Y Strainer/Ball Valve Combination
Inquiry
  • Y-Strainer with integral ball valve
  • Working pressure: 800 PSI (WOG)
  • Temperature range: -40 °F to 365 °F (-40 °C to 185 °C)
  • Replacement screen: 20/50/80 mesh
  • T Handle allows quarter-turn operation
Specifications

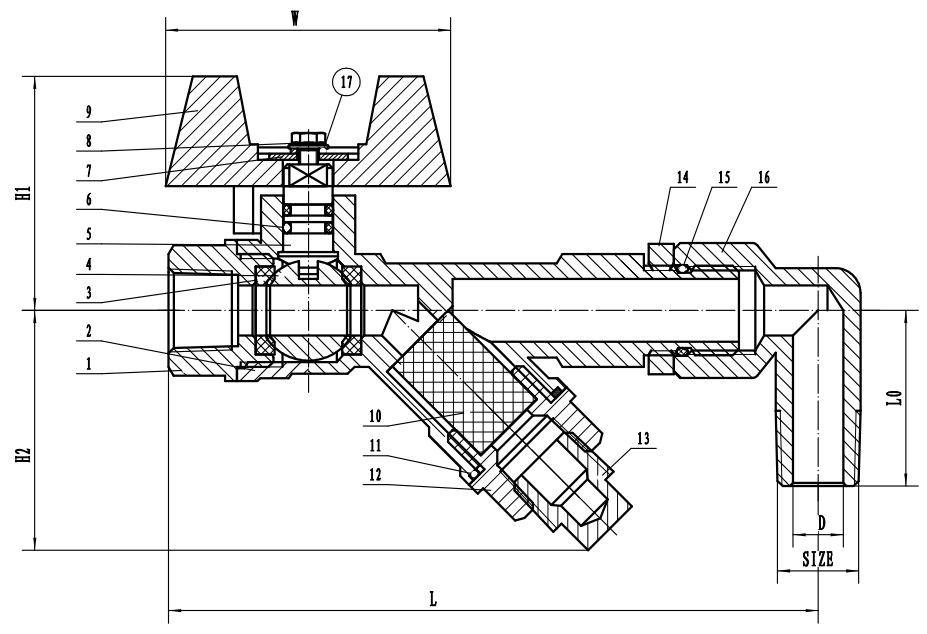

Item # Size L L0 H1 H2 W D
DBVY-25EL 1/4"M x 1/4"F 4.07" (103.5) 4.39" (28) 1.10" (37.2) 1.44" (36.6) 1.79" (45.4) 0.32"(Φ8)
DBVY-33EL 3/8"M x 3/8"F 4.02" (102) 1.93" (49) 1.54" (39) 1.49" (38) 1.79" (45.4) 0.47"(Φ12)
DBVY-50EL 1/2"M x 1/2"F 4.76" (121) 2.01" (51) 1.73" (44) 1.61" (41) 1.79" (45.4) 0.59"(Φ15)
DBVY-75EL 3/4"M x 3/4"F 5.91" (150) 2.36" (60) 1.73" (53) 1.61" (50) 1.79" (45.4) 0.75"(Φ19)
Brass Y Strainer/Ball Valve Combination
Part # Part Name Material
1 Cap Brass
2 Body Brass
3 Seat PTFE
4 Ball Brass
5 Stem Brass
6 O-ring NBR
7 Washer Steel
8 Screw Steel
9 Handle Aluminum
10 Screen S.S.
11 Washer PTFE
12 Cap Brass
13 Plug Brass
14 Nut Brass
15 O-ring NBR
16 Elbow Brass

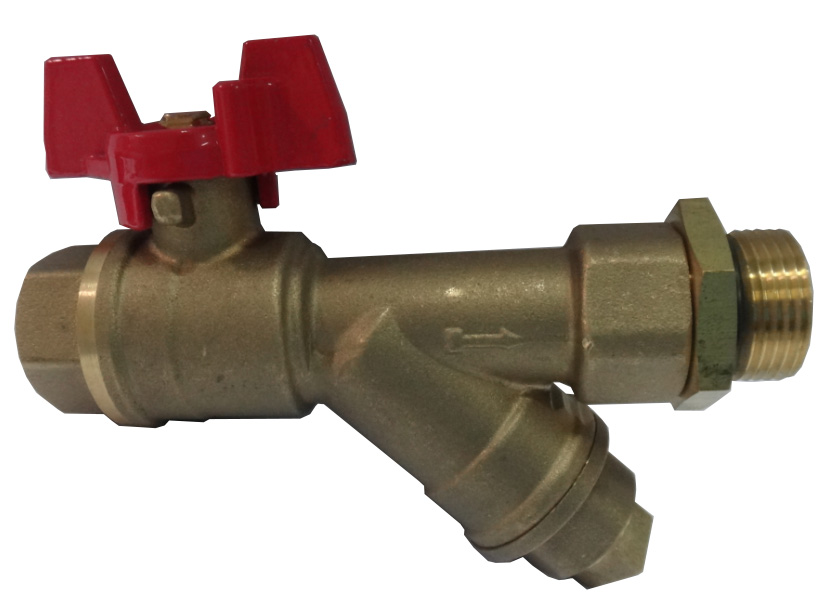

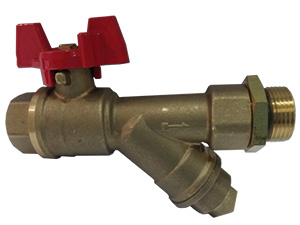

Y Strainer Brass Ball Valve with Female Inlet & Male Outlet

Y Strainer Brass Ball Valve with Female Inlet & Male Outlet
Specifications

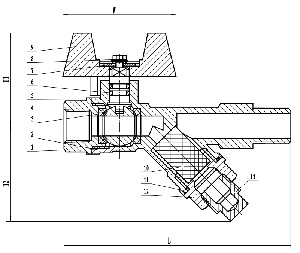

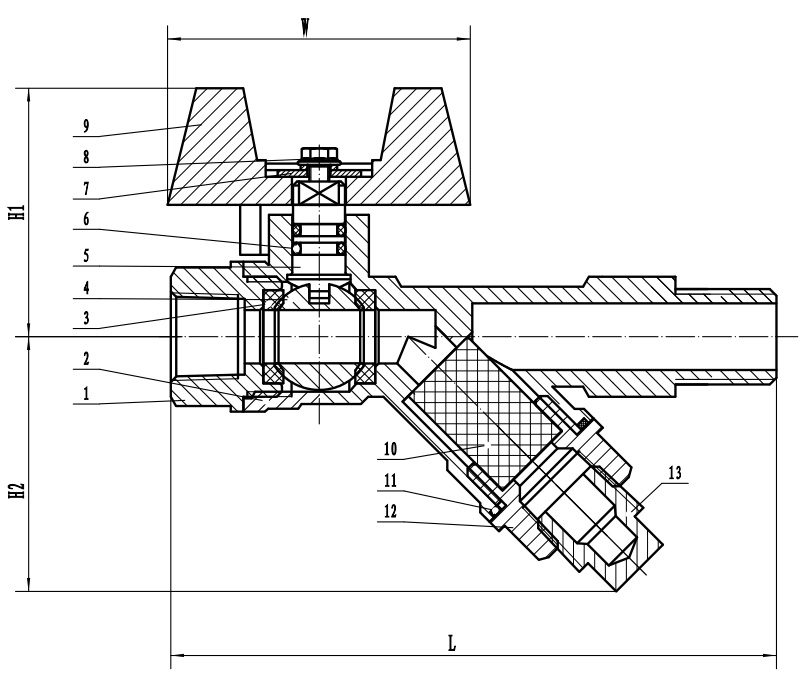

Item # Size L H1 H2 W
DBVY-25 1/4"M x 1/4"F 3.54" (90) 1.10" (37.2) 1.44" (36.6) 1.79" (45.4)
DBVY-33 3/8"M x 3/8"F 3.54" (90) 1.54" (39) 1.49" (38) 1.79" (45.4)
DBVY-50 1/2"M x 1/2"F 4.17" (106) 1.73" (44) 1.61" (41) 1.79" (45.4)
DBVY-75 3/4"M x 3/4"F 5.35" (136) 2.13" (54) 1.93" (49) 1.79" (45.4)
Y Strainer Brass Ball Valve with Female Inlet & Male Outlet
Part # Part Name Material
1 Cap Brass
2 Body Brass
3 Seat PTFE
4 Ball Brass
5 Stem Brass
6 O-ring NBR
7 Washer Carbon Steel
8 Screw Carbon Steel
9 Handle Aluminum
10 Screen S.S.
11 Washer PTFE
12 Cap Brass
13 Plug Brass
