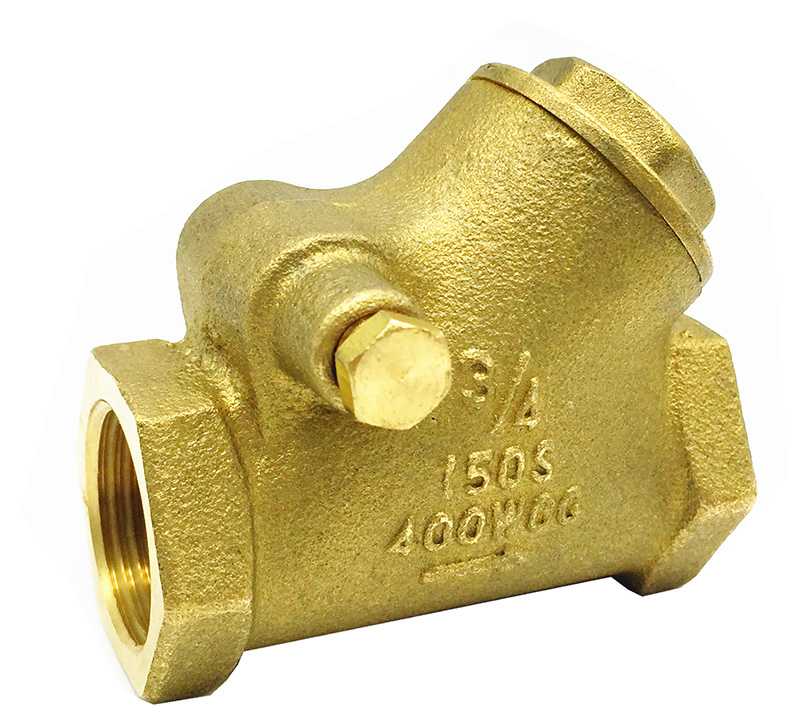

Brass Y-Pattern Check Valve

  • Brass Y-Pattern Check Valve
Inquiry
  • Pressure ratings:
    400 PSI (WOG) for up to 1"
    300 PSI for above 1"
    150 PSI for stream
  • Body: Heavy duty cast brass, female x female NPT threaded ends
  • Metal seal

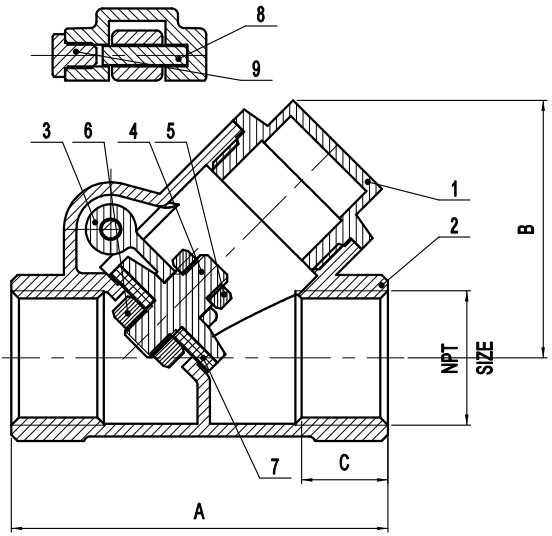

Part # Part Name Material
1 Cap Brass
2 Body Brass
3 Disc Brass
4 Baffle Brass
5 Lock Nut Brass
6 Lock Nut Brass
7 Seat PTFE
8 Hing Pin Brass
9 Bolt Brass
Brass Y-Pattern Check Valve
Inch/Metric (mm)
Item # DN A B C
YCV-50 1/2" 2.36/59.94 1.65/41.91 0.54/13.72
YCV-75 3/4" 2.76/70.10 1.97/50.04 0.57/14.48
YCV-100 1" 3.4/86.36 2.28/57.91 0.7/17.78
YCV-150 1-1/2" 4.57/116.08 3.15/80.01 0.71/18.03
YCV-200 2" 5.03/127.76 3.84/97.54 0.79/20.07
