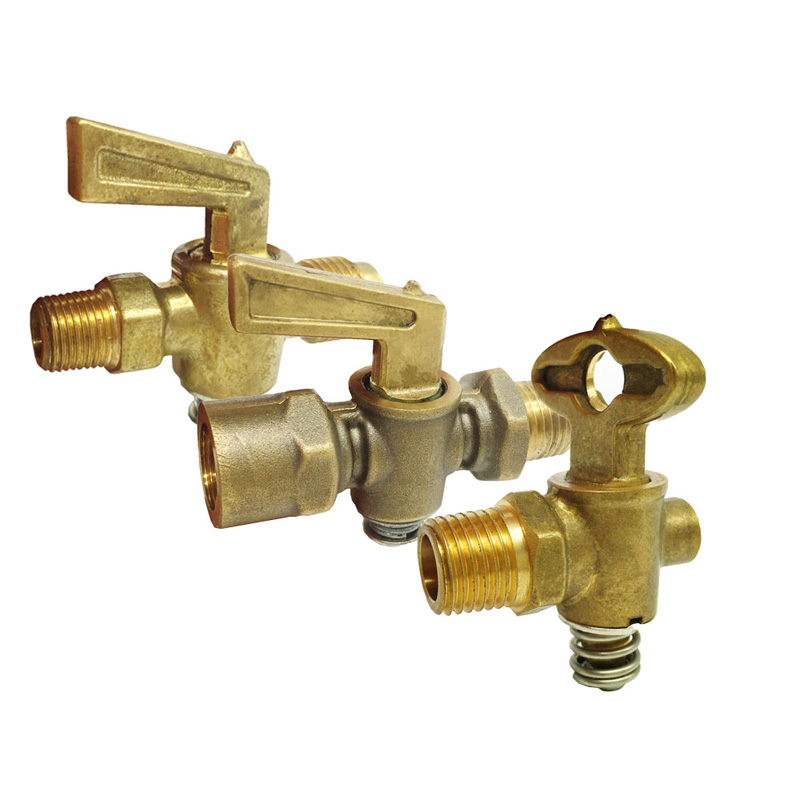

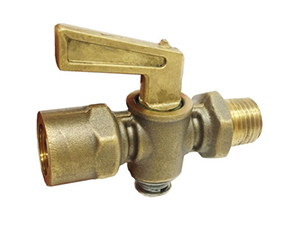

Brass Shut-off Cocks
- Suitable for use with low pressure air, water and fluids
- Designed for a working pressure of 150 PSI
- Metal-to -metal seal
- Not intended for use with natural gas, LPG, nuclear or aircraft applications

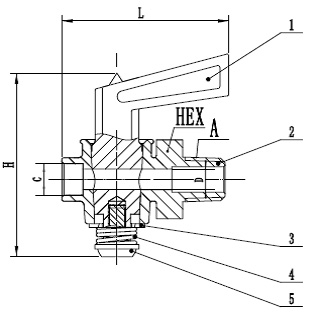

| Part # | Part Name | Material |
| 1 | Stem | Brass |
| 2 | Body | Brass |
| 3 | Gasket | Q235 |
| 4 | Compressed Spring | 65Mn |
| 5 | Screw | Steel |
Inch/Metric (mm)
Size(A)
| C | D | H | L | Hex |
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| 1/8'' | 0.28 | 7.2 | 0.19 | 4.70 | 1.81 | 46 | 1.99 | 50.6 | 0.67 | 17 |
| 1/4'' | 0.28 | 7.20 | 0.26 | 6.50 | 1.81 | 46.00 | 2.06 | 52.30 | 0.67 | 17.00 |
| 3/8'' | 0.31 | 7.90 | 0.28 | 7.20 | 2.29 | 58.20 | 2.30 | 58.40 | 0.83 | 21.00 |
| 1/2'' | 0.31 | 7.90 | 0.28 | 7.20 | 2.50 | 63.50 | 3.00 | 76.20 | 0.91 | 23.00 |

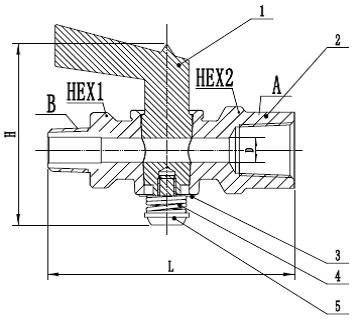

| Part # | Part Name | Material |
| 1 | Stem | Brass |
| 2 | Body | Brass |
| 3 | Gasket | Q235 |
| 4 | Compressed Spring | 65Mn |
| 5 | Screw | Steel |
Inch/Metric (mm)
Size(A)
| B | D | H | L | Hex1 | Hex2 |
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| 1/4'' | 1/4'' | 0.22 | 5.60 | 1.82 | 46.20 | 2.27 | 57.70 | 0.67 | 17.00 | 0.75 | 19.00 |

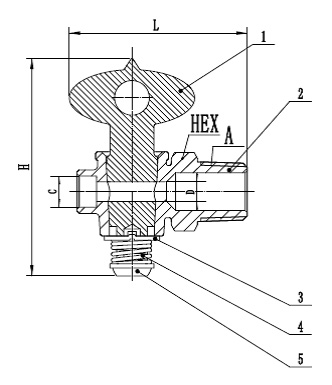

| Part # | Part Name | Material |
| 1 | Stem | Brass |
| 2 | Body | Brass |
| 3 | Gasket | Q235 |
| 4 | Compressed Spring | 65Mn |
| 5 | Screw | Steel |
Inch/Metric (mm)
| Size(A) | C | D | H | L | Hex |
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| 1/8'' | 0.28 | 7.20 | 0.19 | 4.70 | 1.95 | 49.50 | 1.54 | 39.00 | 0.67 | 17.00 |
| 1/4'' | 0.28 | 7.20 | 0.18 | 4.50 | 1.95 | 49.50 | 1.54 | 39.00 | 0.67 | 17.00 |

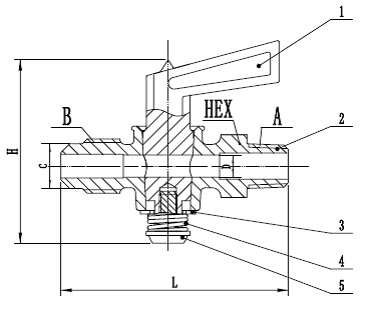

| Part # | Part Name | Material |
| 1 | Stem | Brass |
| 2 | Body | Brass |
| 3 | Gasket | Q235 |
| 4 | Compressed Spring | 65Mn |
| 5 | Screw | Steel |
Inch/Metric (mm)
| Size(A) | B | C | D | H | L | Hex |
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| 1/8'' | 1/4'' | 0.39 | 10 | 0.20 | 5.1 | 1.88 | 47.8 | 2.16 | 54.8 | 0.49 | 12.5 |
| 1/4'' | 1/4'' | 0.39 | 10.00 | 0.26 | 6.50 | 1.84 | 46.80 | 2.19 | 55.60 | 0.67 | 17.00 |
| 1/8'' | 5/16'' | 0.47 | 12.00 | 0.20 | 5.10 | 1.88 | 47.80 | 2.06 | 52.30 | 0.51 | 13.00 |
| 1/4'' | 5/16'' | 0.47 | 12.00 | 0.26 | 6.50 | 1.84 | 46.80 | 2.13 | 54.00 | 0.67 | 17.00 |
| 1/4'' | 3/8'' | 0.47 | 12.00 | 0.26 | 6.50 | 1.84 | 46.80 | 2.27 | 57.70 | 0.67 | 17.00 |
| 3/8'' | 1/2'' | 0.63 | 16.00 | 0.28 | 7.20 | 2.27 | 57.70 | 2.36 | 60.00 | 0.83 | 21.00 |
