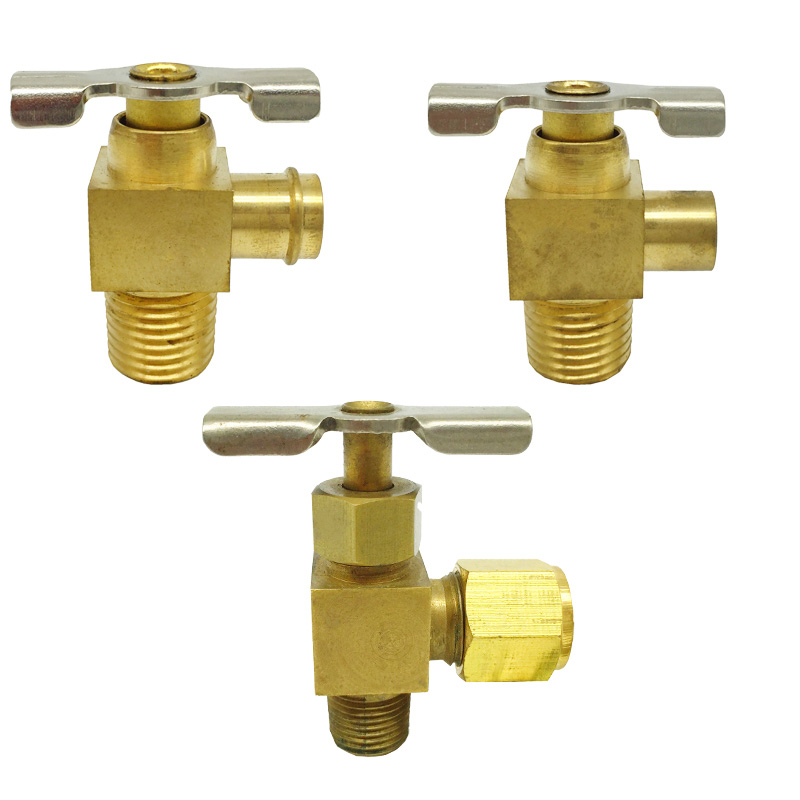

90°Angle Internal Seal Drain Cock
- Working pressure: 150 PSI
- Temperature range: -65 °F to +250 °F (-55 °C to +120 °C)
- Metal to metal seals, brass body, brass stem
- Nickel plated steel T handle

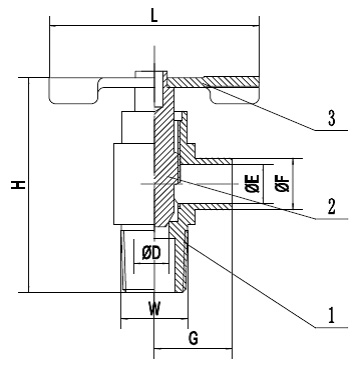

Drain Cock with Straight Outlet
| Part # | Part Name | Material |
| 1 | Body | Brass |
| 2 | Stem | Brass |
| 3 | Handle | Nickel plated Steel
|
Inch/Metric(mm)
| Item # | W | ΦD | G | ΦE | ΦF | H | L |
| DCA-12 | 1/8NPT | 0.18/4.5 | 0.47/12 | 0.24/6 | 0.31/8 | 1.30/33.1 | 1.27/32.3 |
| DCA-25 | 1/4NPT | 0.26/6.5 | 0.63/16 | 0.31/8 | 0.38/9.7 | 1.34/34.1 | 1.27/32.3 |

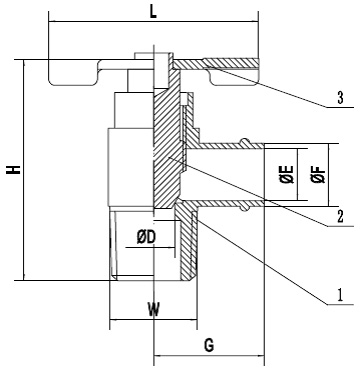

Drain Cock with Single Barb Outlet
| Part # | Part Name | Material |
| 1 | Body | Brass |
| 2 | Stem | Brass |
| 3 | Handle | Nickel plated Steel
|
Inch/Metric(mm)
| Item # | W | ΦD | G | ΦE | ΦF | H | L |
| DCA-25-F | 1/4NPT | 0.26/6.5 | 0.67/17 | 0.31/8 | 0.38/9.7 | 1.34/34.1 | 1.27/32.3 |

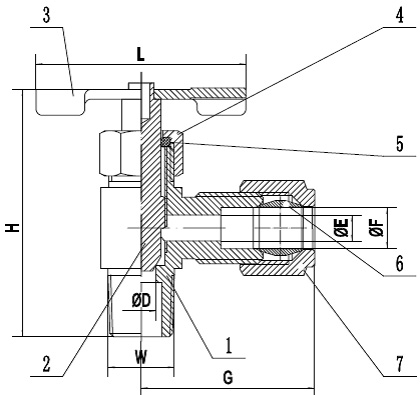

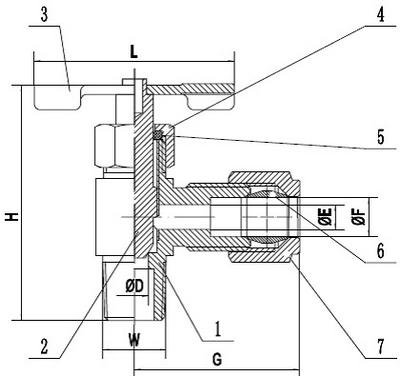

Drain Cock with Compression Outlet
| Part # | Part Name | Material |
| 1 | Body | Brass |
| 2 | Stem | Brass |
| 3 | Handle | Nickle plated Steel
|
| 4 | Nut | Brass |
| 5 | O-Ring | EPDM |
| 6 | Sleeve Nut | H62 |
| 7 | Sleeve Nut | Brass |
Inch/Metric(mm)
| Item # | W | ΦD | G | ΦE | ΦF | | H | L |
| DCA-12-Tubing | 1/8NPT | 0.18/4.5 | 1.05/26.7 | 0.16/4 | 0.25/6.35 | | 1.50/38.1 | 1.27/32.3 |
