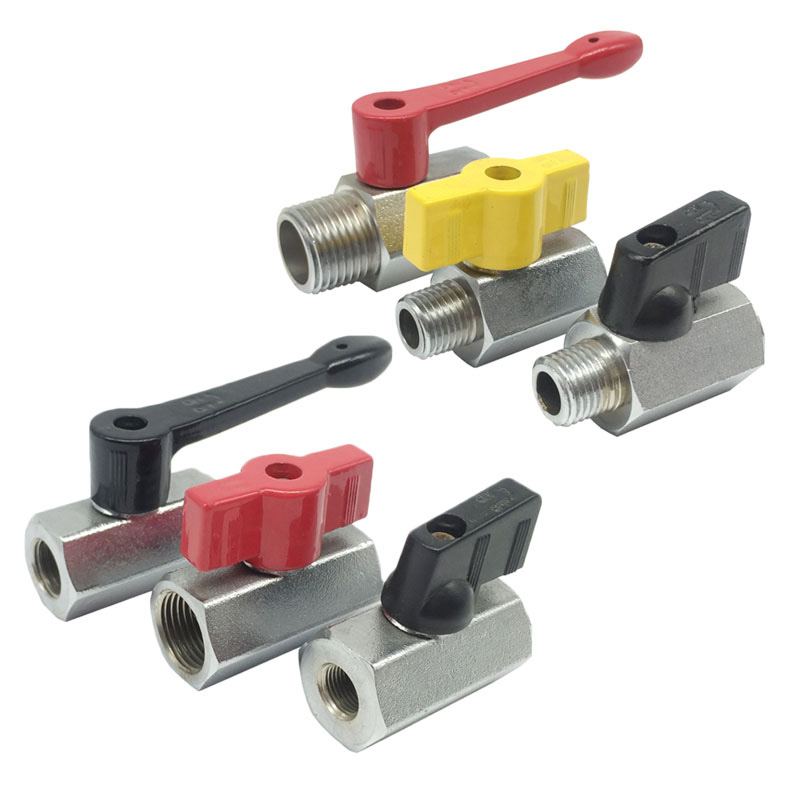

Brass Mini Ball Valve, 600 PSI, Hex Body
- Working pressure: 600 PSI
- Temperature range: -20 °F to 370 °F（-30 °C to +190 °C）
- Suitable for use in confined and hard-to-reach area
- Nickel plated brass hex forged body
- Double seals allow valve to be operated in both directions

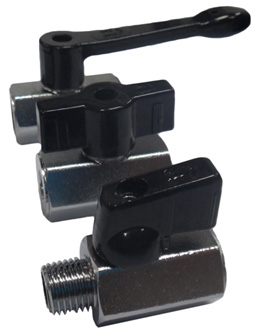

- Optional three kinds of Zinc Alloy handle - Wedge handle, T handle and Lever handle
Female x Female
| Part # | Part Name | Material |
| 1 | Body | Brass |
| 2 | Seat | PTFE |
| 3 | Ball | Brass /S.S. |
| 4 | Cap | Brass |
| 6 | Stem | Brass |
| 7 | O-Ring | FKM |
| 8 | Handle | ZINC ALLOY |
| 9 | Screw + Spring Washer | Q235+ Stainless Steel |
Inch/Metric (mm)
| with Wedge Handle | with Lever Handle | with T Handle | Size | W | D | L |
| NSF, Chrome plated Mini Brass Ball |
| DCBV-12W | DCBV-12L | DCBV-12T | 1/8 | 1/8"NPT | 0.24/6 | 1.57/40 |
| DCBV-25W | DCBV-25L | DCBV-25T | 1/4 | 1/4"NPT | 0.31/8 | 1.67/42.6 |
| DCBV-33W | DCBV-33L | DCBV-33T | 3/8 | 3/8"NPT | 0.31/8 | 1.73/44 |
| DCBV-50W | DCBV-50L | DCBV-50T | 1/2 | 1/2"NPT | 0.39/10 | 2.08/53 |
| NSF Approved, Lead-free Brass Mini Ball Valve with Stainless Steel Ball |
| DCBV-12W-N | DCBV-12L-N | DCBV-12T-N | 1/8 | 1/8"NPT | 0.24/6 | 1.57/40 |
| DCBV-25W-N | DCBV-25L-N | DCBV-25T-N | 1/4 | 1/4"NPT | 0.31/8 | 1.67/42.6 |
| +DCBV-33W-N | DCBV-33L-N | DCBV-33T-N | 3/8 | 3/8"NPT | 0.31/8 | 1.73/44 |
| DCBV-50W-N | DCBV-50L-N | DCBV-50T-N | 1/2 | 1/2"NPT | 0.39/10 | 2.08/53 |
Male x Female
| Part # | Part Name | Material |
| 1 | Body | Brass |
| 2 | Seat | PTFE |
| 3 | Ball | Brass /S.S. |
| 4 | Cap | Brass |
| 6 | Stem | Brass |
| 7 | O-Ring | FKM |
| 8 | Handle | ZINC ALLOY |
| 9 | Screw + Spring Washer | Q235+ Stainless Steel |
Inch/Metric (mm)
with Wedge Handle
| with Lever Handle
| with T Handle
| Size
| W
| D
| L
|
| NSF, Chrome plated Mini Brass Ball |
| DCMV-12W | DCMV-12L | DCMV-12T | 1/8 | 1/8"NPT | 0.24/6 | 1.57/40 |
| DCMV-25W | DCMV-25L | DCMV-25T | 1/4 | 1/4"NPT | 0.31/8 | 1.67/42.6 |
| DCMV-33W | DCMV-33L | DCMV-33T | 3/8 | 3/8"NPT | 0.31/8 | 1.73/44 |
| DCMV-50W | DCMV-50L | DCMV-50T | 1/2 | 1/2"NPT | 0.39/10 | 2.08/53 |
| NSF Approved, Lead-free Brass Mini Ball Valve with Stainless Steel Ball |
| DCMV-12W-N | DCMV-12L-N | DCMV-12T-N | 1/8 | 1/8"NPT | 0.24/6 | 1.57/40 |
| DCMV-25W-N | DCMV-25L-N | DCMV-25T-N | 1/4 | 1/4"NPT | 0.31/8 | 1.67/42.6 |
| DCMV-33W-N | DCMV-33L-N | DCMV-33T-N | 3/8 | 3/8"NPT | 0.31/8 | 1.73/44 |
| DCMV-50W-N | DCMV-50L-N | DCMV-50T-N | 1/2 | 1/2"NPT | 0.39/10 | 2.08/53 |
