  6. NSF Stainless Steel Mini Ball Valve, One-Piece Ball Valve, with Hex Body

NSF Stainless Steel Mini Ball Valve, One-Piece Ball Valve, with Hex Body

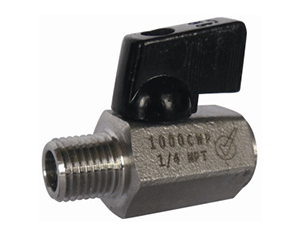

  • NSF Stainless Steel Mini Ball Valve, One-Piece Ball Valve, with Hex Body
  • NSF Stainless Steel Mini Ball Valve, One-Piece Ball Valve, with Hex Body
Inquiry
  • Threads available with Female x Female or Female x Male
  • Working pressure: 1000 psi for 1/8" to 3/8", 800 psi for 1/2"
  • Temperature range: -4 °F to +250 °F (-20 °C to +120 °C)
  • Material: 316 stainless steel body and cap
  • Zinc Alloy wedge, lever and T handle optional
  • NSF Stainless Steel Mini Ball Valve, One-Piece Ball Valve, with Hex Body
  • NSF Stainless Steel Mini Ball Valve, One-Piece Ball Valve, with Hex Body
  • NSF Stainless Steel Mini Ball Valve, One-Piece Ball Valve, with Hex Body
Part # Part Name Material
1 Body 316 Stainless Steel
2 Seat PTFE
3 Ball 316 Stainless Steel
4 O-Ring Viton
5 Cap 316 Stainless Steel
6 Stem 316 Stainless Steel
7 Stem Bottom Seal PTFE
8 Stem Top Seal PTFE
9 Screw 304 Stainless Steel
10 Handle Zinc Alloy

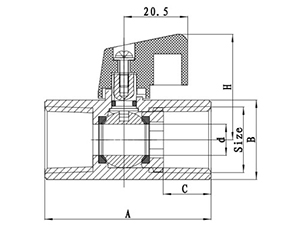

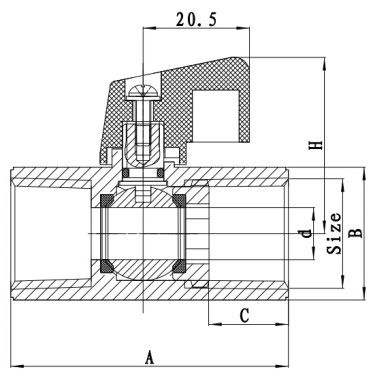

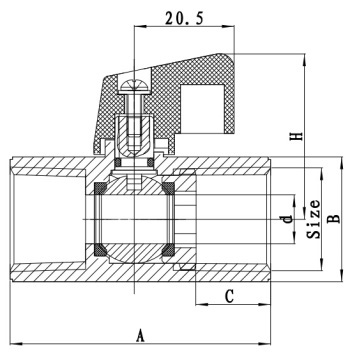

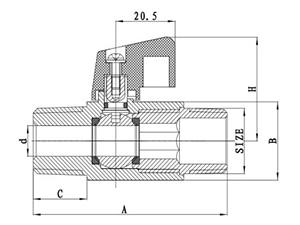

Stainless Steel Mini Ball Valve with Wedge Handle Inch/Metric(mm)
Item# Size d IN(mm) A IN(mm) B IN(mm) C IN(mm) H IN(mm)
1000SMBV12-WH 1/8'' F x F 0.32'' (8) 1.79''(45.5) 0.85'' (21.5) 0.51'' (13) 1.24'' (31.5)
1000SMBV25-WH 1/4'' F x F
1000SMBV33-WH 3/8" F x F 1.73''(44)
800SMBV50-WH 1/2" F x F 0.39'' (10) 2.11''(53.5) 1'' (25.5) 0.59'' (15) 1.32'' (33.5)
1000SMBV12M-WH 1/8'' M x F 0.32'' (8) 1.79''(45.5) 0.85'' (21.5) 0.51''(13) 1.24''(31.5)
1000SMBV25M-WH 1/4'' M x F
1000SMBV33M-WH 3/8" M x F 1.73''(44)
800SMBV50M-WH 1/2" M x F 0.39'' (10) 2.22'' (56.5) 1'' (25.5) 0.59'' (15) 1.32''(33.5)
1000SMBV12MM-WH 1/8'' M x M 0.32'' (8) 2.17'' (55) 0.85'' (21.5) 0.51'' (13) 1.24'' (31.5)
1000SMBV25MM-WH 1/4'' M x M
1000SMBV33MM-WH 3/8" M x M 2.22''(56.5)
800SMBV50MM-WH 1/2" M x M 0.39'' (10) 2.64'' (67) 1''(25.5) 0.73''(18.5) 1.32'' (33.5)
Stainless Steel Mini Ball Valve with T Handle
Item # Size d IN(mm) A IN(mm) B IN(mm) C IN(mm) H IN(mm)
1000SMBV12-TH 1/8'' F x F 0.32'' (8) 1.79''(45.5) 0.85'' (21.5) 0.51'' (13) 1.24'' (31.5)
1000SMBV25-TH 1/4” F x F
1000SMBV33-TH 3/8" F x F 1.73''(44)
800SMBV50-TH 1/2" F x F 0.39'' (10) 2.11''(53.5) 1'' (25.5) 0.59'' (15) 1.32'' (33.5)
1000SMBV12M-TH 1/8'' M x F 0.32'' (8) 1.79''(45.5) 0.85'' (21.5) 0.51''(13) 1.24''(31.5)
1000SMBV25M-TH 1/4''M x F
1000SMBV33M-TH 3/8" M x F 1.73''(44)
800SMBV50M-TH 1/2" M x F 0.39'' (10) 2.22'' (56.5) 1'' (25.5) 0.59'' (15) 1.32''(33.5)
1000SMBV12MM-TH 1/8'' M x M 0.32'' (8) 2.17'' (55) 0.85'' (21.5) 0.51'' (13) 1.24'' (31.5)
1000SMBV25MM-TH 1/4'' M x M
1000SMBV33MM-TH 3/8" M x M 2.22''(56.5)
800SMBV50MM-TH 1/2" M x M 0.39'' (10) 2.64'' (67) 1''(25.5) 0.73''(18.5) 1.32'' (33.5)
Stainless Steel Mini Ball Valve with Lever Handle
Item # Size d IN(mm) A IN(mm) B IN(mm) C IN(mm) H IN(mm)
1000SMBV12-LH 1/8'' F x F 0.32'' (8) 1.79''(45.5) 0.85'' (21.5) 0.51'' (13) 1.24'' (31.5)
1000SMBV25-LH 1/4'' F x F
1000SMBV33-LH 3/8" F x F 1.73''(44)
800SMBV50-LH 1/2" F x F 0.39'' (10) 2.11''(53.5) 1'' (25.5) 0.59'' (15) 1.32'' (33.5)
1000SMBV12M-LH 1/8'' M x F 0.32'' (8) 1.79''(45.5) 0.85'' (21.5) 0.51''(13) 1.24''(31.5)
1000SMBV25M-LH 1/4'' M x F
1000SMBV33M-LH 3/8" M x F 1.73''(44)
800SMBV50M-LH 1/2" M x F 0.39'' (10) 2.22'' (56.5) 1'' (25.5) 0.59'' (15) 1.32''(33.5)
1000SMBV12MM-LH 1/8” M x M 0.32'' (8) 2.17'' (55) 0.85'' (21.5) 0.51'' (13) 1.24'' (31.5)
1000SMBV25MM-LH 1/4'' M x M
1000SMBV33MM-LH 3/8" M x M 2.22''(56.5)
800SMBV50MM-LH 1/2" M x M 0.39'' (10) 2.64'' (67) 1''(25.5) 0.73''(18.5) 1.32'' (33.5)
