Lead Free Brass Ball Valve with Solder End Connections, NSF approved

  • Lead Free Brass Ball Valve with Solder End Connections, NSF approved
Inquiry
  • Working pressure: 600 PSI for 1/4"-2", 400 PSI for 2-1/2"&3"
  • Temperature range: -40 ° F to +400 ° F (-40 °C ~ +205 °C)
  • Forged brass body and cap, stainless steel ball
  • Steel handle w/vinyl grip

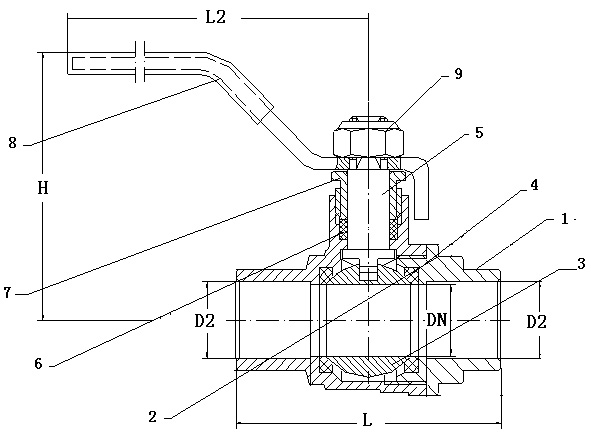

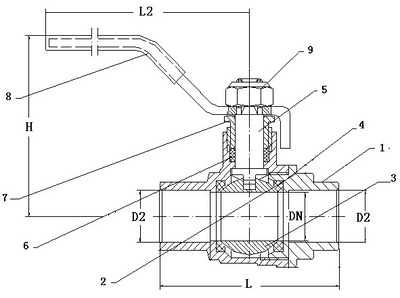

Part # Part Name Material
1 Body Brass
2 Bonnet Brass
3 Ball Stainless Steel
4 Seal Seat PTFE
5 Stem Brass
6 Packing Ring PTFE
7 Gland Bonnet Brass
8 Handle Steel
9 Nut Steel
  • Lead Free Brass Ball Valve with Solder End Connections, NSF approved
Inch/Metric(mm)
Item # Size L L2 H DN D2
LF-SEBV-25 1/4" 1.86/47.24 3.15/80.01 1.73/43.94 0.39/9.91 0.38/9.65
LF-SEBV-33 3/8" 1.86/47.24 3.15/80.01 1.73/43.94 0.39/9.91 0.5/12.70
LF-SEBV-50 1/2" 2.24/56.90 3.86/98.04 2.24/56.90 0.59/14.99 0.62/15.75
LF-SEBV-75 3/4" 2.79/70.87 3.86/98.04 2.36/59.94 0.74/18.80 0.88/22.35
LF-SEBV-100 1" 3.54/89.92 4.41/112.01 2.7/68.58 0.98/24.89 1.13/28.70
LF-SEBV-125 1-1/4" 4.13/104.90 4.8/121.92 3.04/77.22 1.26/32.00 1.38/35.05
LF-SEBV-150 1-1/2" 4.69/119.13 5.43/137.92 3.79/96.27 1.57/39.88 1.63/41.40
LF-SEBV-200 2" 5.55/140.97 5.43/137.92 4.15/105.41 1.97/50.04 2.13/54.10
LF-SEBV-150 2-1/2" 6.61/167.89 8.18/207.77 4.98/126.49 2.48/62.99 2.64/67.06
LF-SEBV-200 3" 6.89/175.01 9.68/245.62 5.06/128.52 2.95/74.93 3.41/86.61
