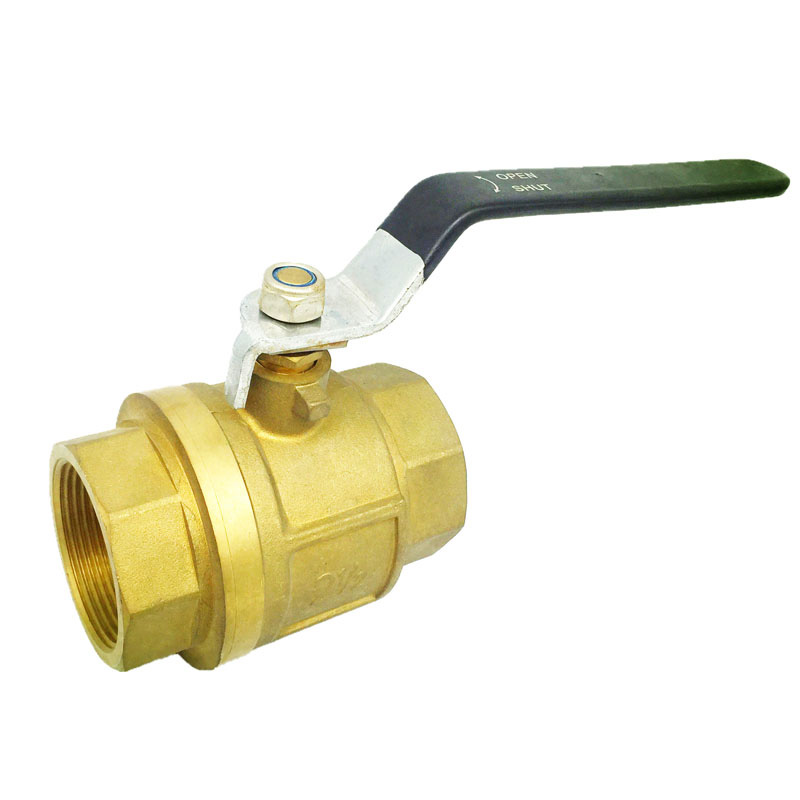

Lead Free, 2-Piece Full Port Brass Ball Valve - NSF, UL, CSA approved

  • Lead Free, 2-Piece Full Port Brass Ball Valve - NSF, UL, CSA approved
Inquiry
  • Working pressure: 600 PSI for 1/4"-2", 400PSI for 2-1/2"&3"
  • Temperature range: -40 ° F to +400 ° F (-40 °C ~ +205 °C)
  • Full port, Female x Female and Male x Female
  • Forged brass body and cap, PTFE seal, chrome plated brass ball
  • Locking handle is applicable to the ball valves with all sizes.
  • T handle is available for the size up to 3/4".
  • Round handle is available for the size up to 1".
  • NSF, UL, CSA approved ball valve
Part # Part Name Material
1 Body Lead free-Brass
2 Cap Lead free-Brass
3 Ball Seats PTFE
4 Ball Chromed plated Lead free-Brass
5 Stem Lead free-Brass
6 Packing PTFE
7 Packing Nut Lead free-Brass
8 Handle Carbo Steel, w/Vinyl Cover
9 Nut Zinc plated Steel
  • Lead Free, 2-Piece Full Port Brass Ball Valve - NSF, UL, CSA approved
Inch/Metric(mm)
Item # Size Thread Port A B C D
LF-F25BBV 1/4" Female x Female Full Port 1.76/44.7 1.74/44.2 3.15/80 0.39/9.91
LF-F33BBV 3/8" 1.76/44.7 1.74/44.2 3.15/80 0.39/9.91
LF-F50BBV 1/2" 2.05/52.07 1.87/47.5 4.01/101.85 0.59/14.99
LF-F75BBV 3/4" 2.36/59.94 2.01/51.05 4.01/101.85 0.75/19.05
LF-F100BBV 1" 2.76/70.10 2.72/69.09 4.53/115 0.98/24.89
LF-F120BBV 1 1/4" 3.3184.07 3.03/76.96 5/127 1.26/32
LF-F150BBV 1 1/2" 3.66/92.96 3.7/93.98 5.59/142 1.58/40.13
LF-F200BBV 2" 4.18/106.17 4/101.6 5.59/142 1.97/50
LF-F250BBV 2 1/2" 5.38/136.65 4.76/120.9 8.66/220 2.52/64
LF-F300BBV 3" 6.04/153.42 5.08/129.03 8.66/220 2.91/73.91
