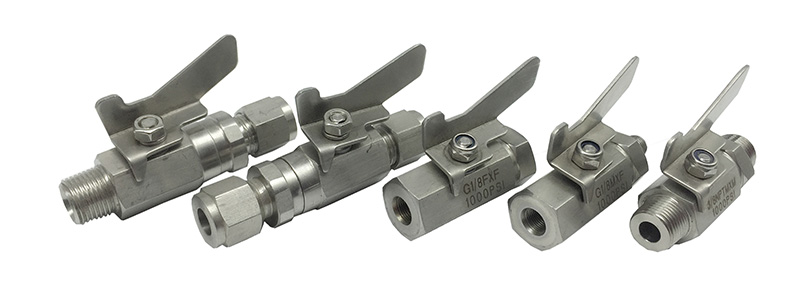

Mini Stainless Steel Ball Valve, with Butterfly Handle

  • Mini Stainless Steel Ball Valve, with Butterfly Handle
Inquiry
  • Working pressure: 1000 PSI (WOG) , 150 PSI (WSP)
  • Temperature range: -36 ° F to + 368 ° F ( -38 ° C to + 190 ° C )
  • Full port for 1/4" , standard port for 3/8" and 1/2"
  • 316 Stainless steel body and ball
  • Teflon seats and seals
  • 304 Stainless steel OSHA compliant lockout handle

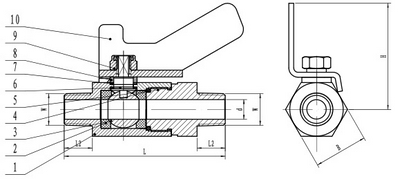

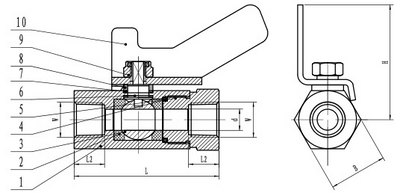

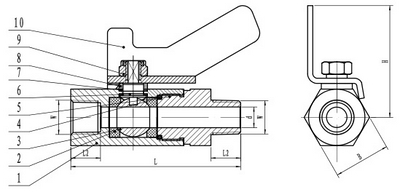

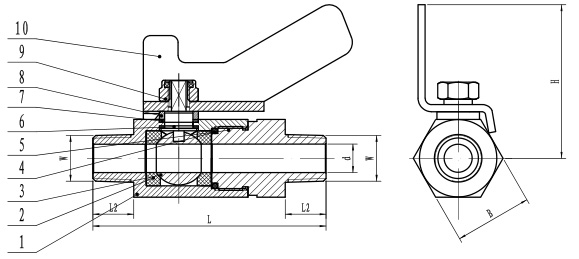

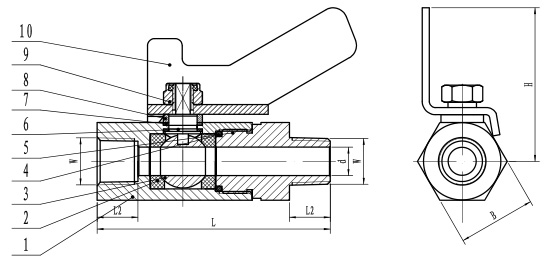

Part # Part Name Material
1 Body S316 Stainless Steel
2 Seat PTFE
3 Ball S316 Stainless Steel
4 O-Ring Viton
5 Cap S316 Stainless Steel
6 Stem S316 Stainless Steel
7 Stem Bottom Seal PTFE
8 Stem Top Seal PTFE
9 Nut 304 Stainless Steel
10 Handle 304 Stainless Steel
  • Mini Stainless Steel Ball Valve, with Butterfly Handle
  • Mini Stainless Steel Ball Valve, with Butterfly Handle
  • Mini Stainless Steel Ball Valve, with Butterfly Handle
Inch/Metric(mm)
Item # Size d L B (Hex) H
MSBMM-12 1/8"×1/8"(M×M) 0.236/6 2.59/65.8 0.87/22.1 1.5/38.1
MSBMM-25 1/4"×1/4"(M×M) 0.314/8 2.59/65.8 0.87/22.1 1.5/38.1
MSBMM-33 3/8"×3/8"(M×M) 0.314/8 2.59/65.8 0.87/22.1 1.5/38.1
MSBMM-50 1/2"×1/2"(M×M) 0.314/8 3.07/78 0.98/24.9 1.5/38.1
MSBMF-12 1/8"×1/8"(M×F) 0.236/6 2.59/65.8 0.87/22.1 1.5/38.1
MSBMF-25 1/4"×1/4"(M×F) 0.314/8 2.59/65.8 0.87/22.1 1.5/38.1
MSBMF-33 3/8"×3/8"(M×F) 0.314/8 2.59/65.8 0.87/22.1 1.5/38.1
MSBMF-50 1/2"×1/2"(M×F) 0.314/8 2.93/74 0.98/24.9 1.5/38.1
MSBFF-12 1/8"×1/8"(F×F) 0.236/6 2.15/54.6 0.87/22.1 1.5/38.1
MSBFF-25 1/4"×1/4"(F×F) 0.314/8 2.15/54.6 0.87/22.1 1.5/38.1
MSBFF-33 3/8"×3/8"(F×F) 0.314/8 2.27/57.7 0.87/22.1 1.5/38.1
MSBFF-50 1/2"×1/2"(F×F) 0.314/8 2.63/66.8 0.98/24.9 1.5/38.1
