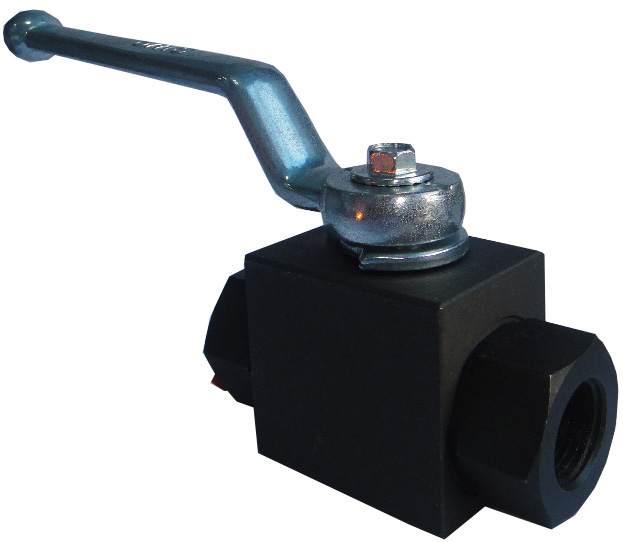

Three-Piece High Pressure Carbon Steel Ball Valve
- Pressure ratings:
7000 PSI for 1/4" to 3/8"
5800PSI for 1/2"
4600PSI for 3/4" and above)
- Temperature range: -20 ° F to +175 ° F (-30 ° C to +80 ° C)
- 3PC full port design, blowout proof stem
- Lever handle

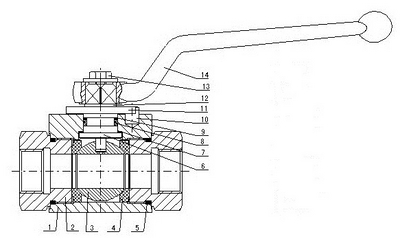

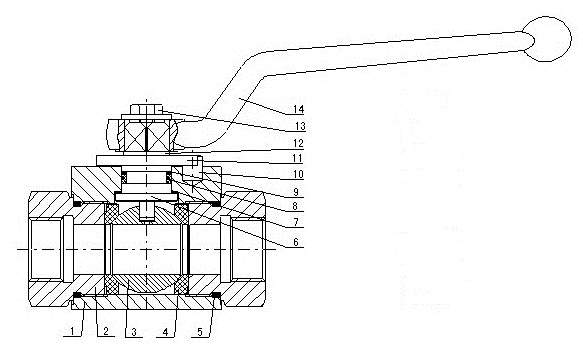

| | Part Name | Material |
| 1 | Body | Carbon Steel, Zinc Phosphate Coat |
| 2 | Cap | Carbon Steel, Zinc Phosphate Coat |
| 3 | Ball | Chrome plated Steel |
| 4 | Ball Seat | POM |
| 5 | Cap Seal | NBR O-Ring |
| 6 | Stem | Zinc plated Steel |
| 7 | Thrust Ring | ABS |
| 8 | O-Ring | NBR |
| 9 | Washer | Zinc plated Steel |
| 10 | Stop Pin | Zinc plated Steel |
| 11 | Stop Plate | Zinc plated Steel |
| 12 | Spring Washer | Zinc plated Steel |
| 13 | Bolt | Zinc plated Steel |
| 14 | Handle | Zinc plated Steel |
Inch/Metric(mm)
Item #
| Size (d1) | LW | L2 | L | B | H | H1 | H2 |
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| 32H965 | 3/8" | 0.39 | 10 | 4.72 | 120 | 2.83 | 72 | 1.26 | 32 | 3.23 | 82 | 0.67 | 17 | 0.39 | 10 |
| 32H966 | 1/2" | 0.51 | 13 | 4.72 | 120 | 3.27 | 83 | 1.38 | 35 | 3.23 | 82 | 0.67 | 17 | 1.57 | 40 |
| 32H967 | 3/4" | 0.79 | 20 | 6.69 | 170 | 3.74 | 95 | 1.89 | 48 | 4.61 | 117 | 0.94 | 24 | 2.24 | 57 |
| 32H968 | 1" | 0.98 | 25 | 6.69 | 170 | 4.45 | 113 | 2.24 | 57 | 4.92 | 125 | 1.12 | 29 | 2.52 | 64 |
