Carbon Steel Ball Valve, with Hex Body
- Working pressure: 2000 PSI ( 1/4" to 1" ), 1500PSI ( 1-1/4" to 2")
- Temperature range: -20 °F to 425 °F(-30 °C to +220 °C)

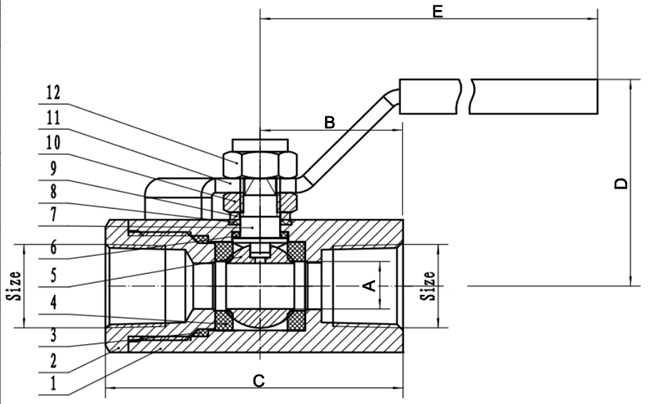

| Part # | Part Name | Material |
| 1 | Body | Carbon Steel |
| 2 | Valve Cap | Carbon Steel |
| 3 | Ball Seat | RPTFE |
| 4 | Seal | RPTFE |
| 5 | Ball | Stainless Steel |
| 6 | Seal | RPTFE |
| 7 | Stem | Stainless Steel |
| 8 | Seal | RPTFE |
| 9 | Retaining Washer | Stainless Steel |
| 10 | Nut | Stainless Steel |
| 11 | Handle | Stainless Steel |
| 12 | Retaining Nut | Stainless Steel |
Inch/Metric(mm)
Item #
| Size
| A | B | C | D | E |
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm |
| CSV-25 | 1/4" | 0.37 | 9.40 | 1.18 | 29.97 | 2.36 | 59.94 | 1.63 | 41.40 | 4.02 | 102.11 |
| CSV-33 | 3/8" | 0.37 | 9.40 | 1.18 | 29.97 | 2.36 | 59.94 | 1.63 | 41.40 | 4.02 | 102.11 |
| CSV-50 | 1/2" | 0.37 | 9.40 | 1.18 | 29.97 | 2.36 | 59.94 | 2.07 | 52.58 | 4.54 | 115.32 |
| CSV-75 | 3/4" | 0.49 | 12.45 | 1.32 | 33.53 | 2.64 | 67.06 | 2.36 | 59.94 | 4.54 | 115.32 |
| CSV-100 | 1" | 0.66 | 16.76 | 1.44 | 36.58 | 2.87 | 72.90 | 2.52 | 64.01 | 5.31 | 134.87 |
Intech Manufacturing is a professional manufacturer of standard and custom valves, couplings and fittings, machining parts, plastic parts, and rubber parts, etc. We can provide custom products made from stainless steel, brass, bronze, carbon steel, aluminum, and plastic. Besides manufacturing, we also offer business sourcing for any valves, fittings, hoses or machining parts that we do not make at home location. In accordance to your special needs, we can provide customized one-stop solutions for you.
