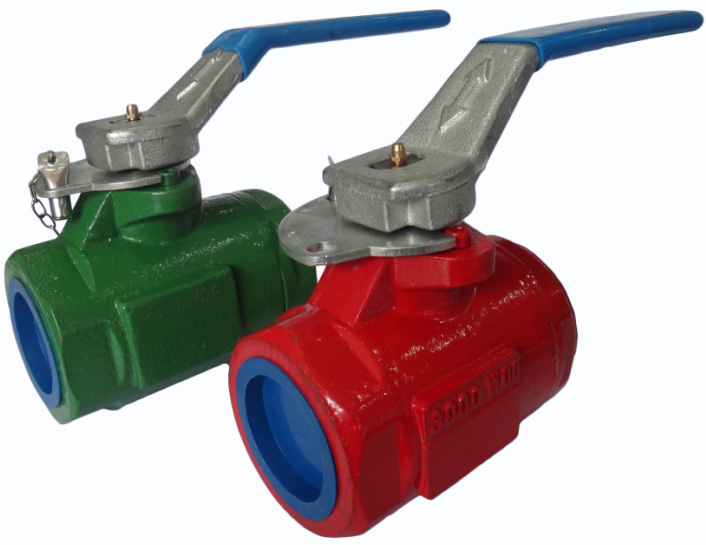

Oilfield Ball Valves, Ductile Iron/Carbon Steel Valves
- Pressure range: 1000 PSI-5000 PSI
- Temperature range: -20 °F to 480 °F (-30 °C to +250 °C)

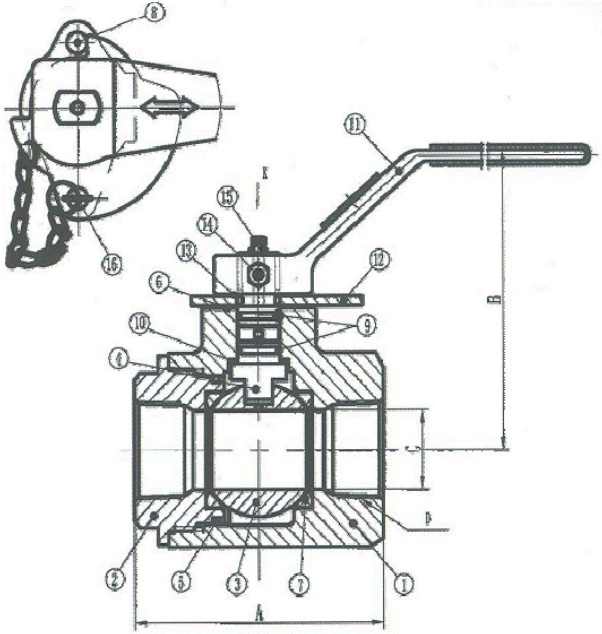

| Part # | Part Name | Material |
| 1 | Body | Ductile Iron/A216 WVB |
| 2 | Cap | Ductile Iron/A216 WVB |
| 3 | Ball | S.S.304 |
| 4 | Stem | S.S.420 |
| 5 | Body Seal | HNBR/VITON |
| 6 | Stem Bearing | PTFE |
| 7 | Seats | RPTFE/PEEK |
| 8 | Stop Pin | Steel |
| 9 | Stem Seal | HNBR |
| 10 | Thrust Bearing | PTFE |
| 11 | Handle | Carbon Steel |
| 12 | Stop Plate | Steel |
| 13 | Retaining Ring | Steel |
| 14 | Handle | Carbon Steel |
| 15 | Grease Zero | Copper |
| 16 | Pin with Chain | Carbon Steel |
Inch/Metric(mm)
| Item # | Size | Pressure | Material | A | B | C | Port |
| CS200R-3000 | 2" | 3000psi | A216 WCB | 5.51/139.95 | 5.28/134.11 | 1.49/37.85 | Reduced |
| CS200R-5000 | 2" | 5000psi | 5.51/139.95 | 5.28/134.11 | 1.49/37.85 | Reduced |
| CS200F-3000 | 2" | 3000psi | 6.00/152.40 | 5.93/150.62 | 1.97/50.04 | Full |
| DI100F-2000 | 1" | 2000psi | Ductile Iron | 4.02/102.11 | 3.66/92.96 | 1.00/25.4 | Full |
| DI200R-2000 | 2" | 2000psi | 5.51/139.95 | 5.28/134.11 | 1.5/38.10 | Reduced |
| DI300R-2000 | 3" | 2000psi | 7.48/189.99 | 8.66/219.96 | 1.97/50.04 | Reduced |
| DI400R-1000 | 4" | 1000psi | 8.74/222.00 | 6.77/171.96 | 2.99/75.95 | Reduce |
